Torque Specifications

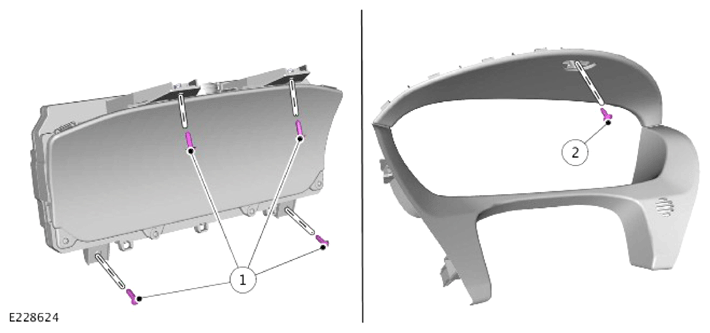

COMPONENT TORQUE LOCATION

G13913871Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

  DESCRIPTION NM LB-FT LB-IN
1 Instrument cluster screws 2 - 18
2 Instrument cluster cover screw 1.5 - 13
