Head Up Display Cooling Fan Control Module (HUDCFCM)

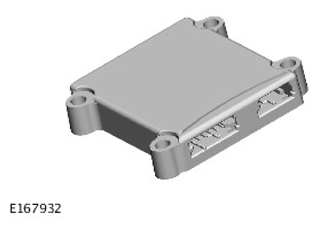

G11310677Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The Head Up Display Cooling Fan Control Module (HUDCFCM) is located inside the instrument panel.

The HUDCFCM is powered by the RJB.

Information can be sent or received through the HS CAN  comfort bus.

The HUDCFCM controls the HUD cooling fan by using a Pulse Width Modulated (PWM) signal.
