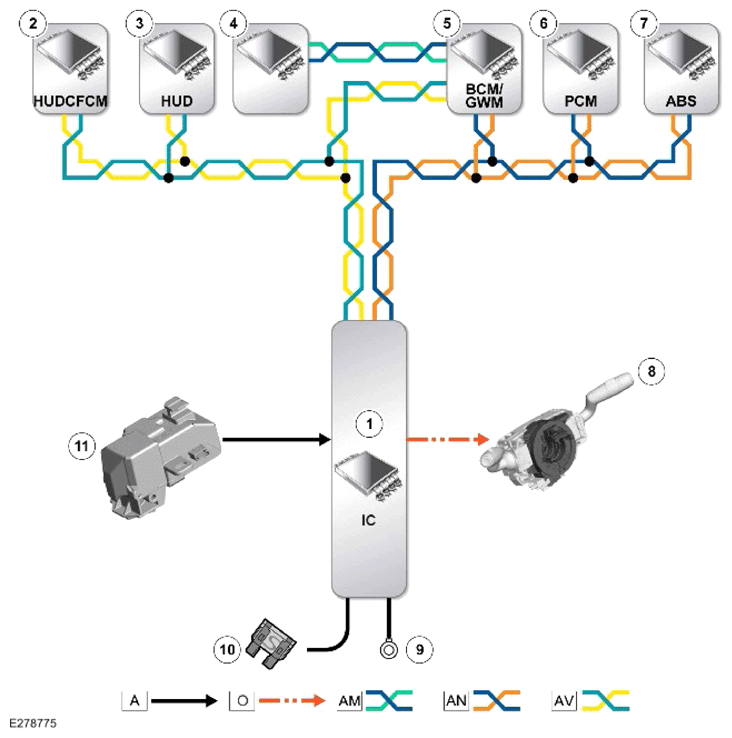

Instrument Cluster - Control Diagram
A = HARDWIRED: O = LIN : AM = HS CAN CHASSIS BUS: AN = HS CAN POWERTRAIN BUS: AV = HS CAN COMFORT BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | IPC |
| 2 | Head Up Display Cooling Fan Control Module (HUDCFCM) |
| 3 | Head Up Display Control Module (HUDCM) |
| 4 | System Modules on HS CAN Comfort bus |
| 5 | Body Control Module/Gateway Module (BCM/GWM) Assembly |
| 6 | Powertrain Control Module (PCM) |
| 7 | Anti-lock Braking System (ABS) Control Module |
| 8 | Steering wheel module (SWM) |
| 9 | Ground |
| 10 | Power Supply from Rear Junction Box (RJB) |
| 11 | Electric Steering Column Lock (ESCL) |
