Rear Suspension Height Sensor (G2187383): Removal

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to:LIFTING (G189141)
Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the height sensor electrical connector.

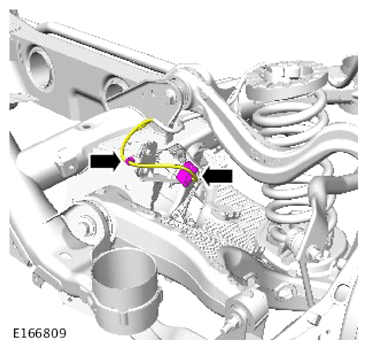

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the height sensor link.

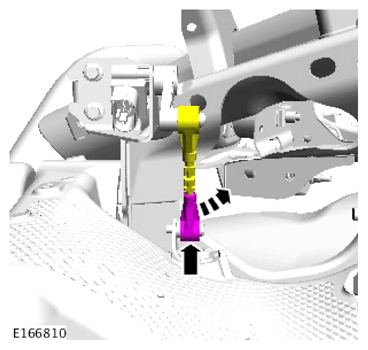

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

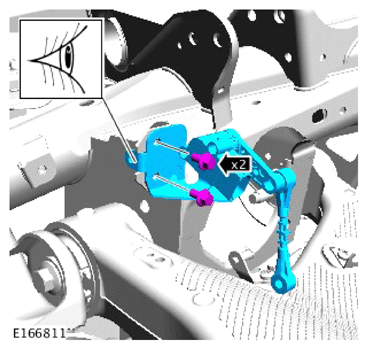

- Remove the 2 bolts.
- Remove the suspension height sensor.
NOTE: Only carry out the following step(s) if a new component is to be installed.

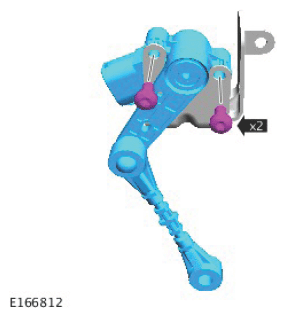

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the bracket.
