Chassis Control Module (G2187522): Removal
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Remove the left loadspace trim panel.
Refer to: LOADSPACE TRIM PANEL .

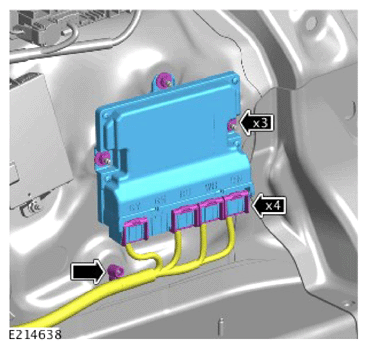

- Disconnect the 4 electrical connectors.
- Release the wiring harness clip.
- Remove the 3 nuts.
- Remove the Chassis Control Module (CHCM).
