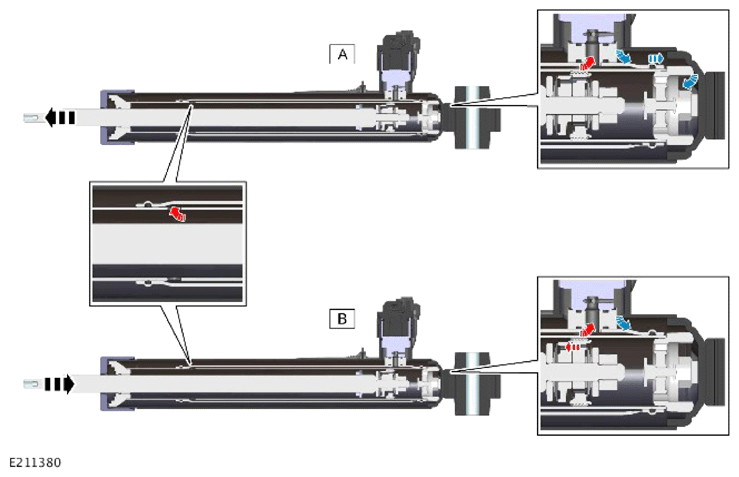

Shock Absorber Fluid Control
| ITEM | DESCRIPTION |
|---|---|
| A | Rebound |
| B | Compression |
In each shock absorber, the damping adjustment is achieved by varying the flow of fluid around the shock absorber. This is achieved by adjusting the electric valve to restrict the flow of fluid.
NOTE:
Due to the design of the shock absorbers, the fluid inside only flows in one direction.
