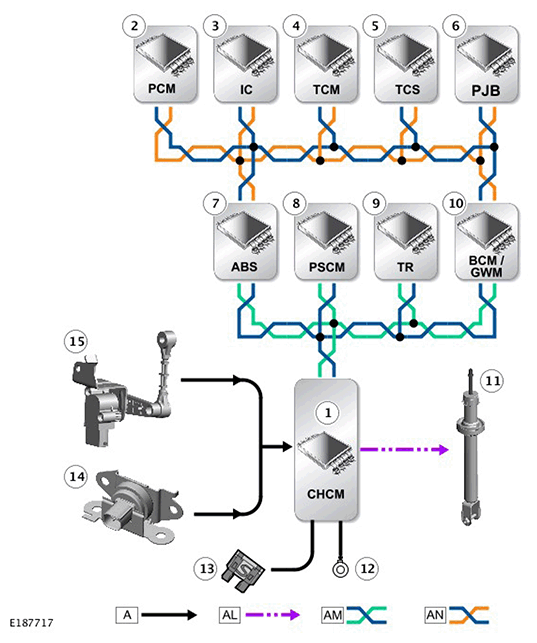

Control Diagram
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HS CAN POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Chassis Control Module (CHCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Instrument Cluster (IC) |
| 4 | Transmission Control module (TCM) |
| 5 | Transmission Control Switch (TCS) |
| 6 | Passenger Junction Box (PJB) |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Power Steering Control Module (PSCM) |
| 9 | Terrain Response (TR)/JaguarDrive Switchpack (JDS) |
| 10 | Body Control Module/Gateway Module (BCM/GWM) |
| 11 | Adaptive shock absorber (quantity 4) |
| 12 | Ground |
| 13 | Supply |
| 14 | Accelerometer (quantity 4) |
| 15 | Height sensor (quantity 4) |
