Vehicle Dynamic Suspension -- E-Pace/X540
>>
Vehicle Dynamic Suspension (G1941813)
>>
Description And Operation
>>
Vehicle Dynamic Suspension (G2181021)
>>
Component Location

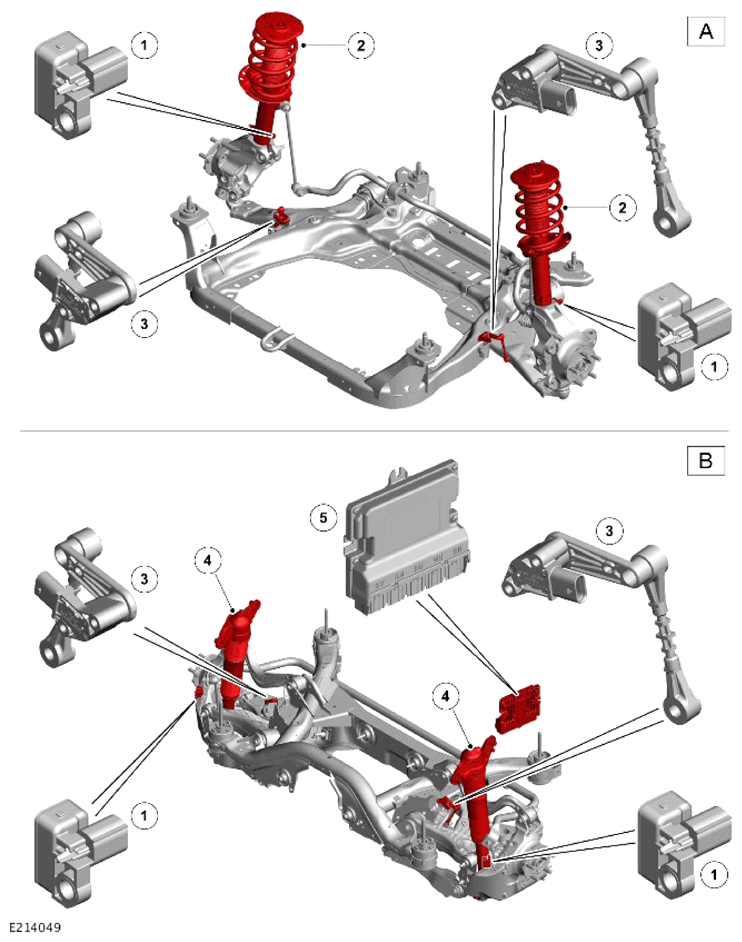

Component Location
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM
DESCRIPTION
A
Front suspension
B
Rear suspension
1
Accelerometers (quantity 4)
2
Front adaptive shock absorber assembly (quantity 2)
3
Height sensors (quantity 4)
4
Rear adaptive shock absorber assembly (quantity 2)
5
Chassis Control Module (CHCM)
