48V Power distribution (DI4 and PI4)

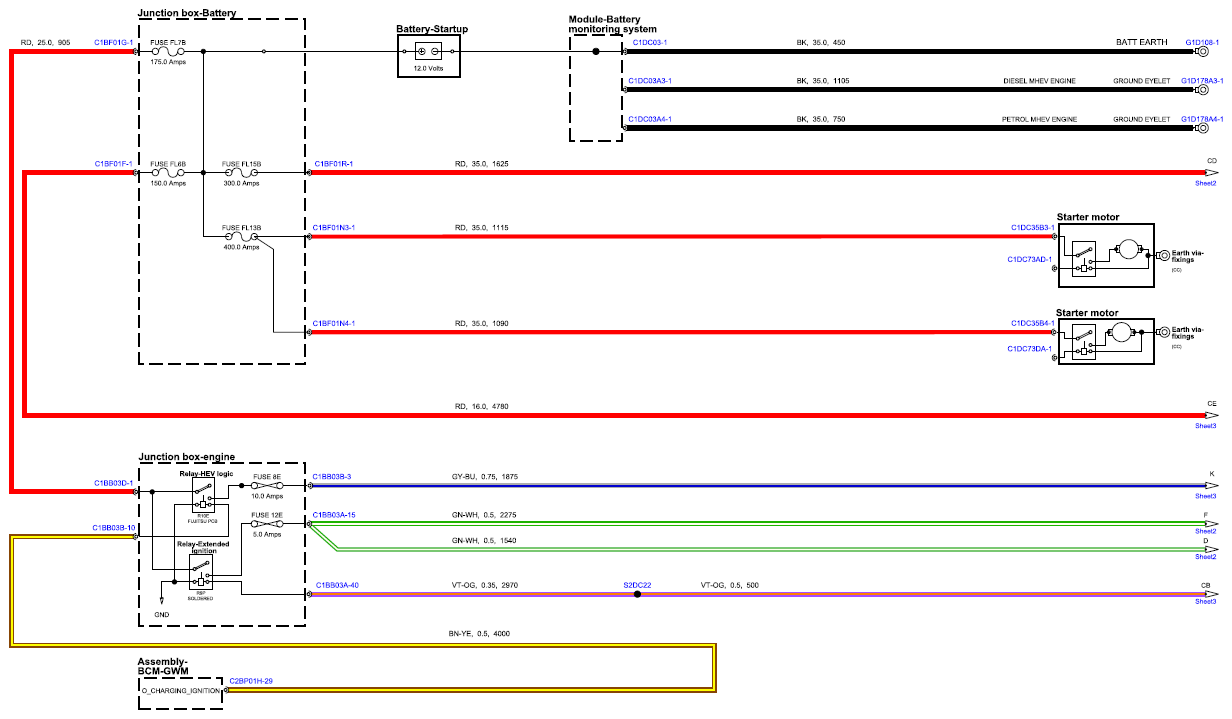

Fig 1: 48V Power Distribution Circuit Diagram - DI4 And PI4 (Sheet 1)
G15669376Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

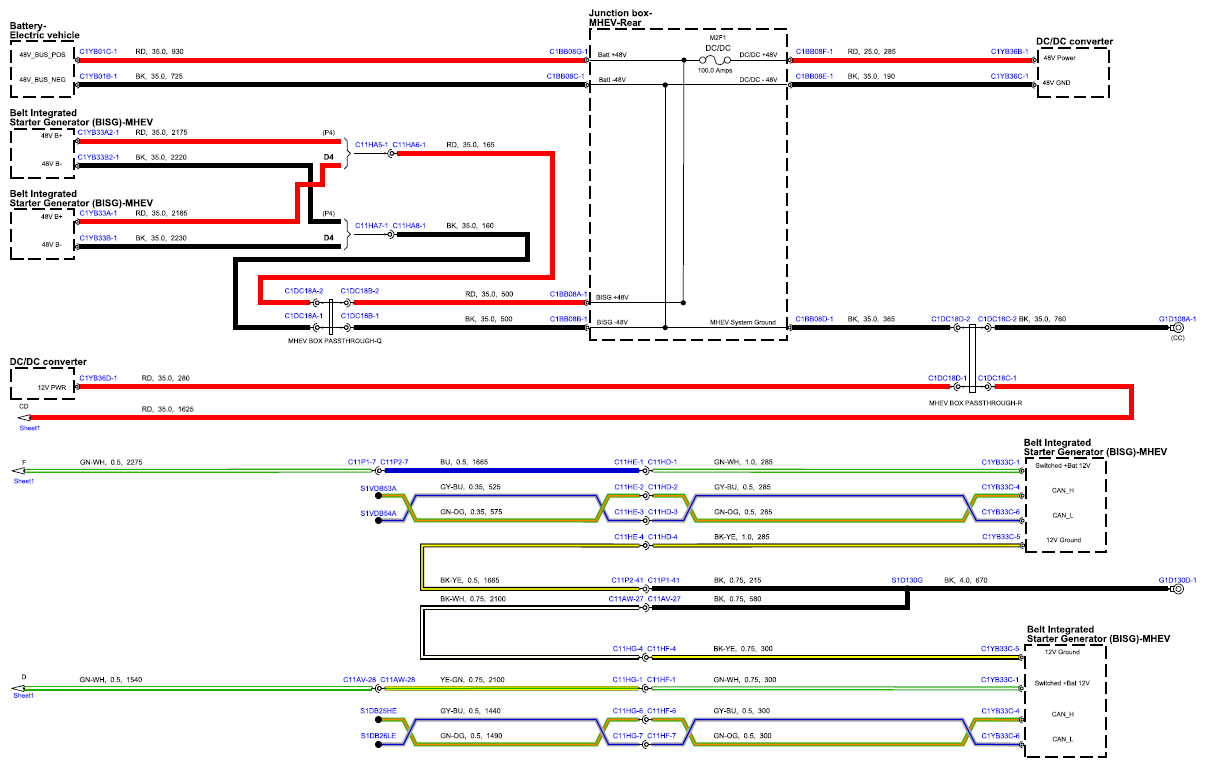

Fig 2: 48V Power Distribution Circuit Diagram - DI4 And PI4 (Sheet 2)
G15669377Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

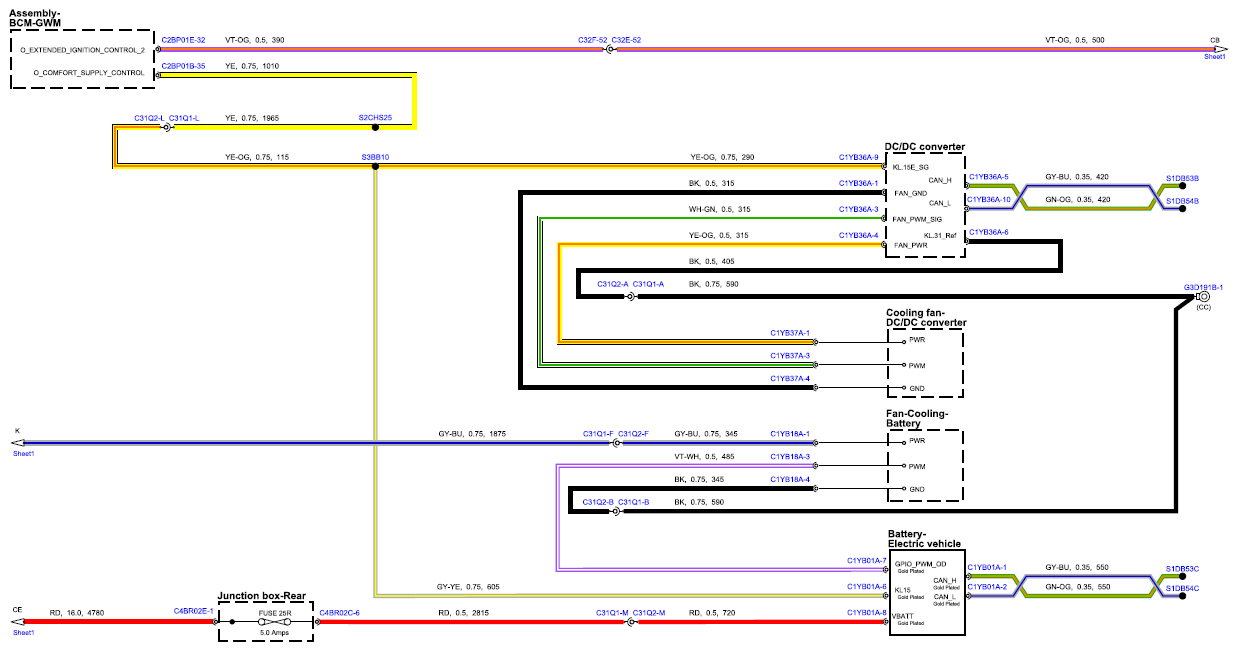

Fig 3: 48V Power Distribution Circuit Diagram - DI4 And PI4 (Sheet 3)
G15669378Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
