Brake Vacuum Pump - INGENIUM I4 2.0L Petrol (G2172734): Removal
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When components are disconnected, all openings must be sealed.
- Be prepared to collect escaping engine oil.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to LIFTING (G189141)
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Remove the oil pump chain.
Refer to: OIL PUMP CHAIN .

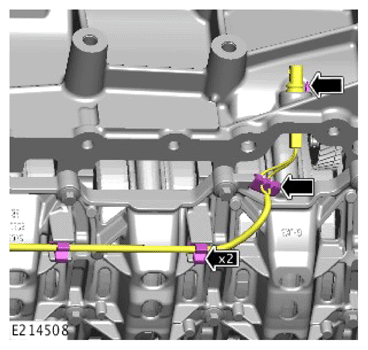

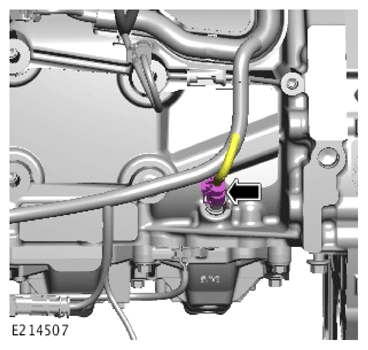

Disconnect the electrical connector.
Release the 4 wiring harness clips.

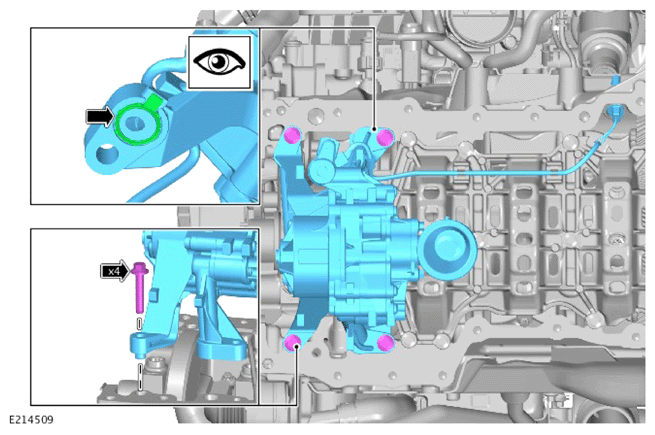

- Remove the 4 bolts.
- Remove the variable flow oil pump with integral vacuum pump assembly.
- Inspect the O-ring seal, replace if damaged.
