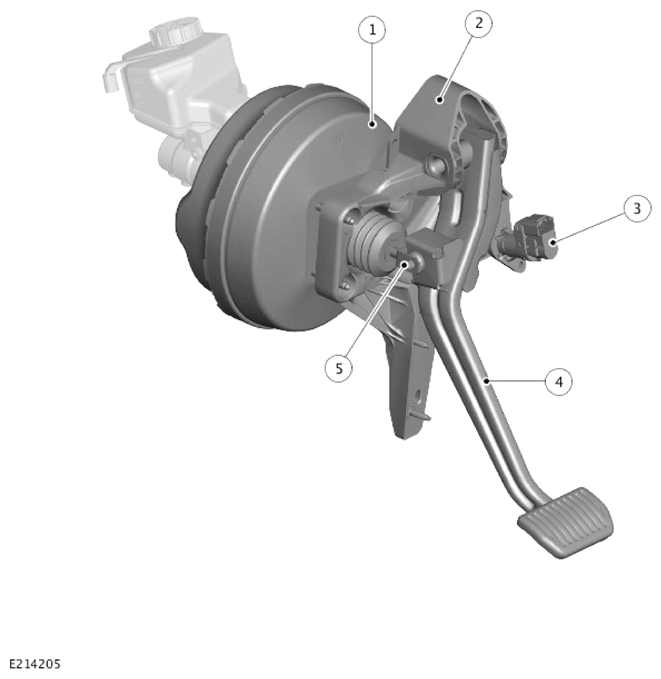

Brake Pedal
NOTE:
Automatic transmission variant shown, manual transmission variant is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake booster |
| 2 | Bracket - Brake pedal |
| 3 | Brake pedal switch |
| 4 | Brake pedal |
| 5 | Input shaft - Brake booster |
The brake pedal is mounted in a bracket attached to the rear side of the engine bulkhead panel. The brake pedal is connected to the brake booster push rod with a clevis pin.
The brake pedal switch is mounted on the brake pedal bracket and operated by a plate attached to the brake pedal. The brake pedal switch is a combined switch, contains a stop lamp switch and a brake test switch in one housing.
Both switches are connected hardwired to the following:
- Body Control Module/Gateway Module (BCM/GWM)
- Powertrain Control Module (PCM).
The brake pedal switch gives independent signals of brake pedal operation. The stop lamp switch is normally open, the brake test switch is normally closed to ground.
