Brake Booster (G2174346): Removal

The following step(s) applies to:

All vehicles

WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
CAUTION:
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
  • If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  2. Remove the instrument panel lower trim panel.

    Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .

  3. Remove the windshield wiper motor.

    Refer to: WINDSHIELD WIPER MOTOR .

  4. Remove the brake master cylinder.

    Refer to: BRAKE MASTER CYLINDER .

    The following step(s) applies to:

    Left-hand drive vehicles

  5. Remove the startup battery tray.

    Refer to: STARTUP BATTERY TRAY .

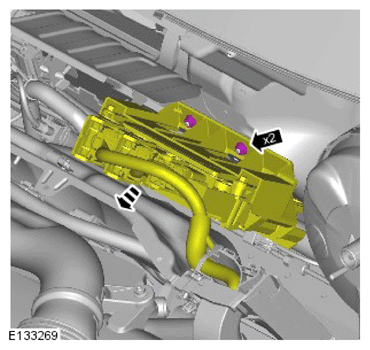

  6. G13892244Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 nuts.
    • CAUTION: Take extra care not to damage wiring harnesses.

    Reposition the Powertrain Control Module (PCM).

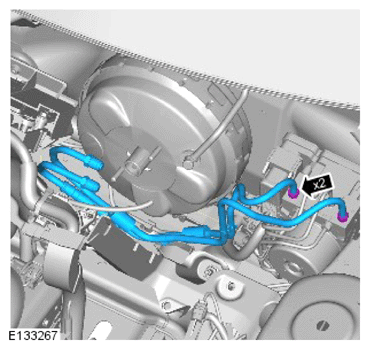

  7. G13892245Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • WARNING: Make sure that the area around the component is clean and free of foreign material.

      Release the 2 brake pipes from the Hydraulic Control Unit (HCU).

    • CAUTION: Take extra care not to damage the brake pipes during the removal.

    Remove the brake pipes from vehicle.

    The following step(s) applies to:

    Right-hand drive vehicles

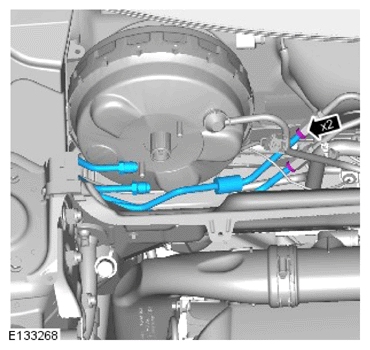

  8. G13892246Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • WARNING: Make sure that the area around the component is clean and free of foreign material.

      Disconnect the 2 brake pipes.

    • CAUTION: Take extra care not to damage the brake pipes during the removal.

    Remove the brake pipes from vehicle.

    The following step(s) applies to:

    All vehicles

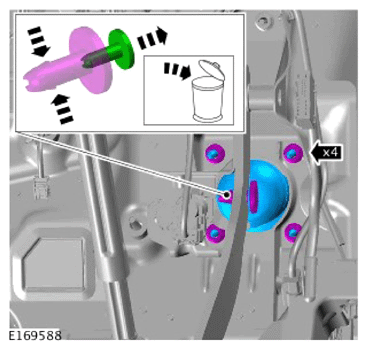

  9. G13892247Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the brake booster push rod from the brake pedal.
    • Discard the brake booster to brake pedal pin.
    • Remove the 4 nuts.

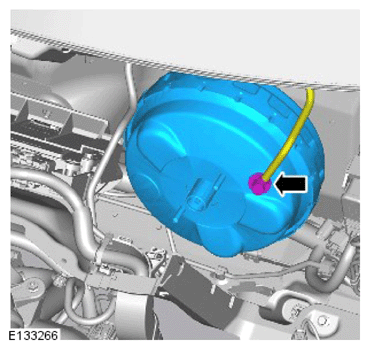

  10. WARNING: Make sure that the area around the component is clean and free of foreign material.
G13892248Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
