Instrument Panel Lower Trim Panel (G2174359): Removal

CAUTION: Use a suitable trim tool.

NOTE: This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Reposition the steering column to its lowest position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the steering column upper trim.
CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the instrument cluster surrounding trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Remove the instrument cluster surrounding trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

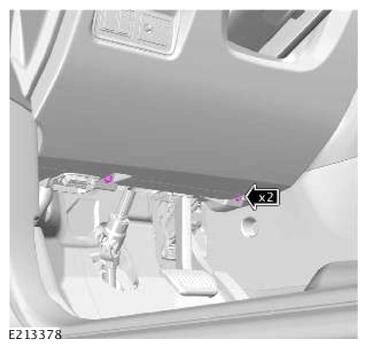

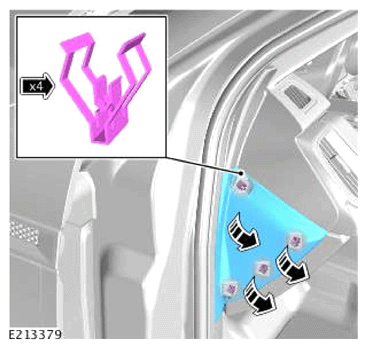

Remove the 2 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

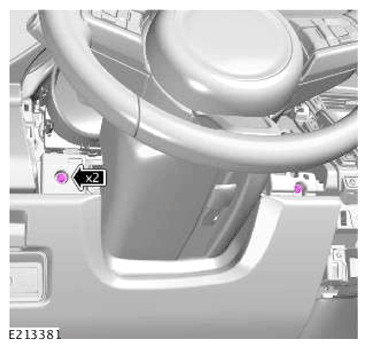

Remove the 2 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel outer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

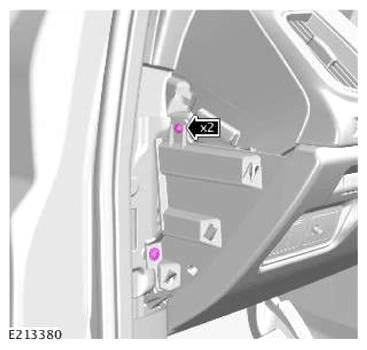

Remove the 2 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

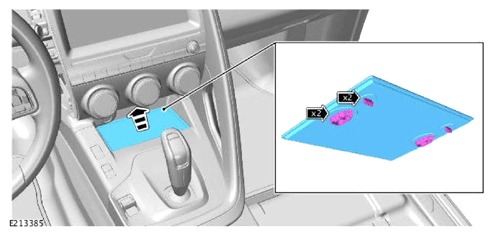

Remove the floor console rubber mat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

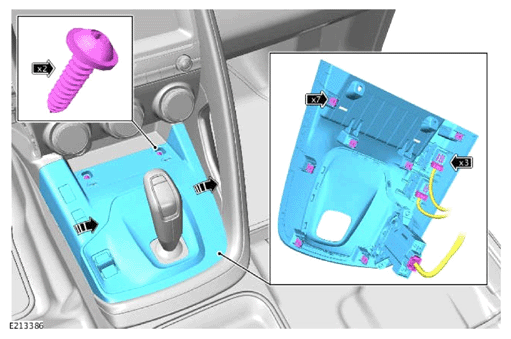

- Remove the 2 screws.
- Release, but do not remove floor console upper trim.
- Disconnect the 3 electrical connectors.
- Remove the floor console upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

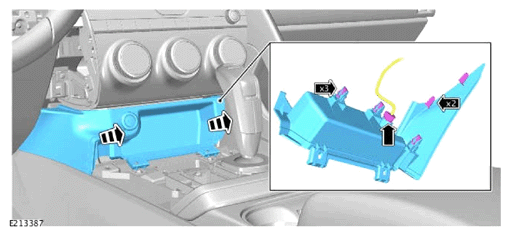

- Release the instrument panel center trim.
- Disconnect the cigar lighter electrical connector.
- Remove the instrument panel center trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

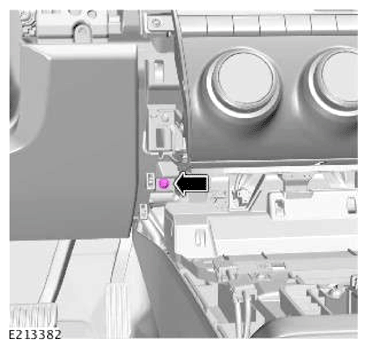

Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

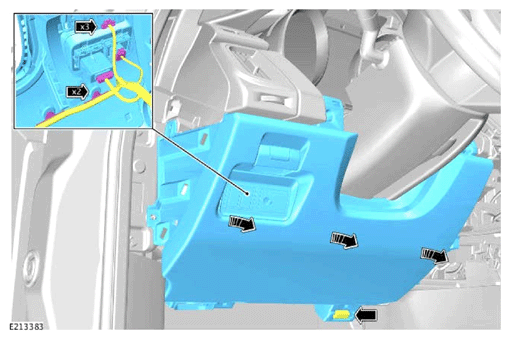

- Release the instrument panel lower trim panel.
- Disconnect the 3 electrical connectors.
- Release the 2 wiring harness clips.
- Release the diagnostic connector.
- Remove the instrument panel lower trim panel.
