Instrument Panel Cross-Car Beam (G2181035): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the climate control assembly.
Refer to: HEATER CORE AND EVAPORATOR HOUSING .
Remove the instrument panel wiring harness.
Refer to: INSTRUMENT PANEL WIRING HARNESS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

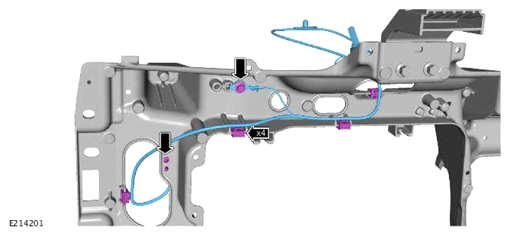

- Remove the ground cable bolt.
- Release the 5 electrical wiring harness clips.
- Remove the electrical wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

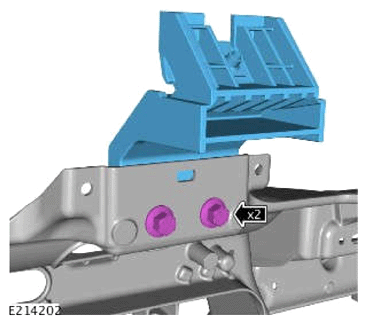

- Remove the 2 bolts.
- Remove the instrument panel bracket.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

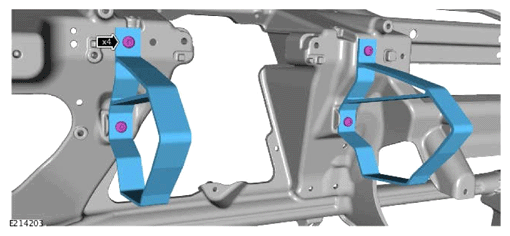

- Remove the 4 bolts.
- Remove the 2 brackets.
