Ignition Switch (G2218833): Removal

  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS .

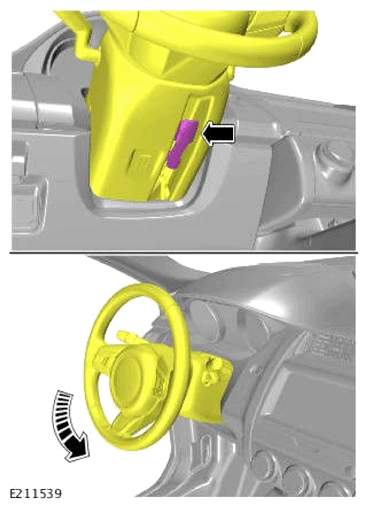

  2. G12559784Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the steering column to its lowest position.

  3. CAUTION: Use a suitable trim tool.

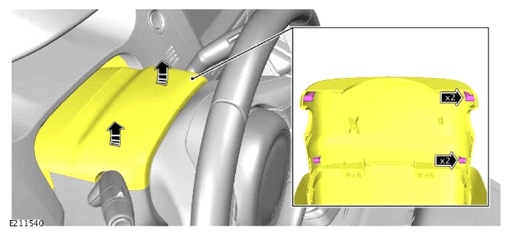

    G12559785Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the steering column upper trim panel.

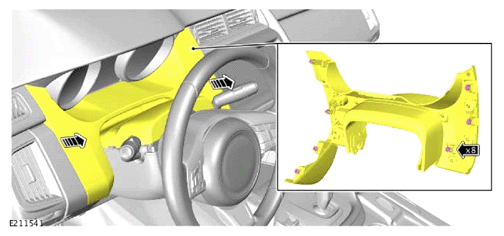

  4. G12559786Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the instrument cluster trim panel.

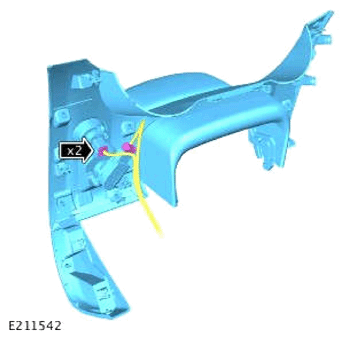

  5. G12559787Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the instrument cluster surrounding trim.

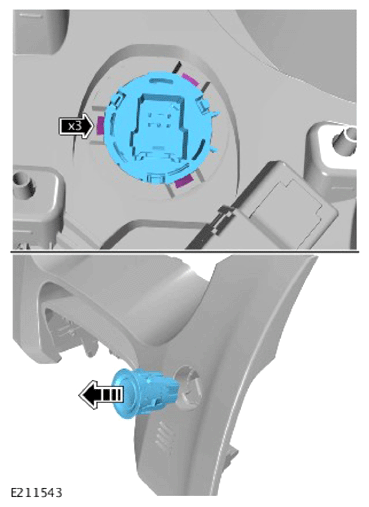

  6. G12559808Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 3 retaining clips.
    • Remove the ignition switch.
