Glove Box (G2164555): Removal

CAUTION: Use a suitable trim tool.

NOTE:

This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

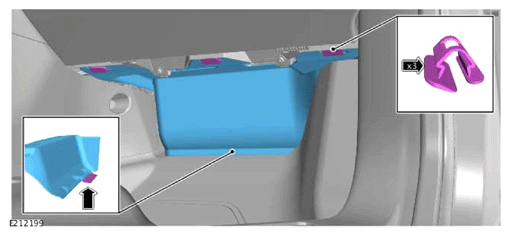

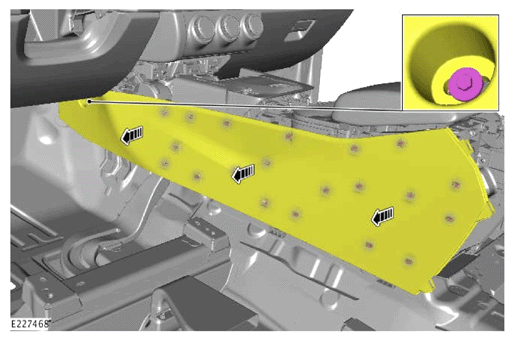

- Release the 3 clips.
- Remove the instrument panel lower trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

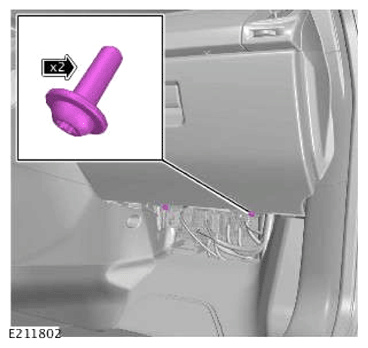

Remove the 2 glove box bottom screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

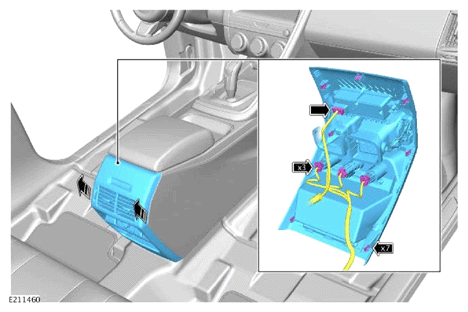

- Release the floor console rear surround trim.
- Disconnect the 4 electrical connectors.
- Remove the floor console rear surround trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the screw.
- Reposition the floor console left side trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the screw.
- Reposition the floor console right side trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Open the glovebox.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

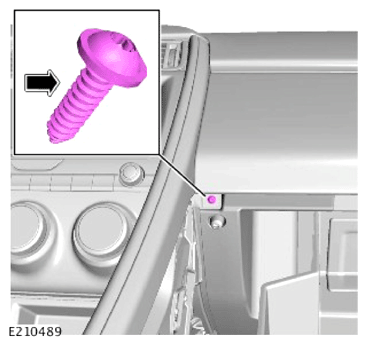

Remove the instrument panel center carrier screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

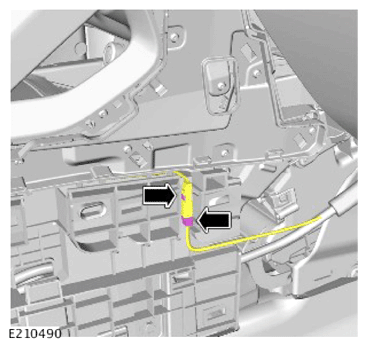

- Release the wiring harness clip.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

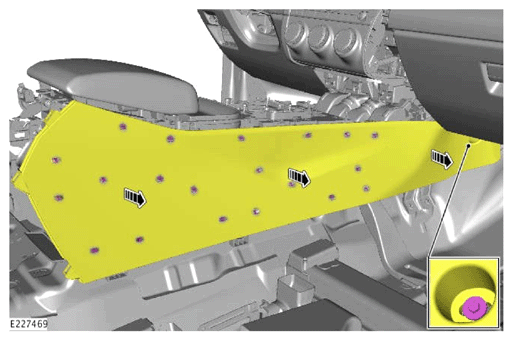

Remove the floor console rubber mat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

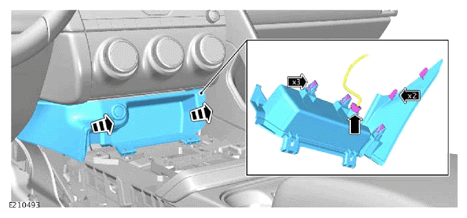

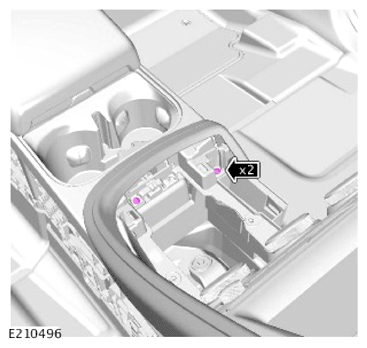

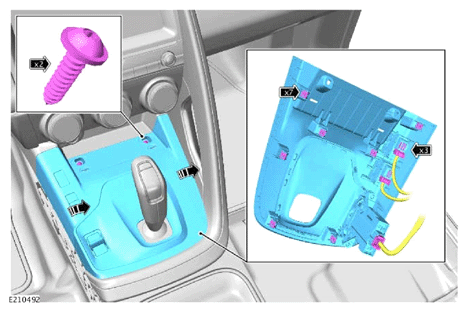

- Remove the 2 floor console upper trim screws.
- Release, but do not remove floor console upper trim.
- Disconnect the 3 electrical connectors.
- Remove the floor console upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

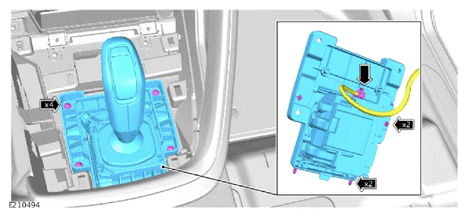

- Remove the 4 Transmission Control Module screws.
- Disconnect the electrical connector.
- Remove the Transmission Control Module (TCM).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

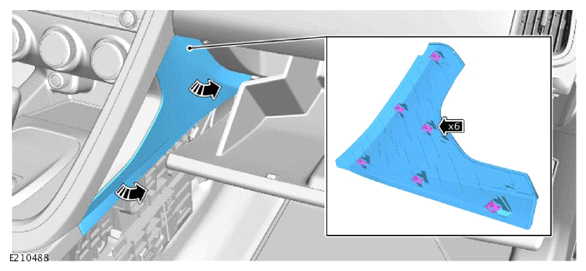

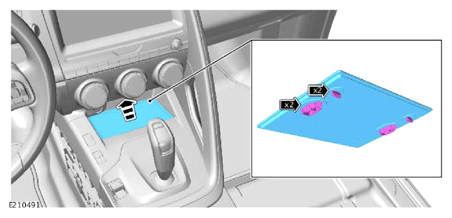

- Release the instrument panel center trim panel.
- Disconnect the 12V accessory socket electrical connector.
- Remove the instrument panel center trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

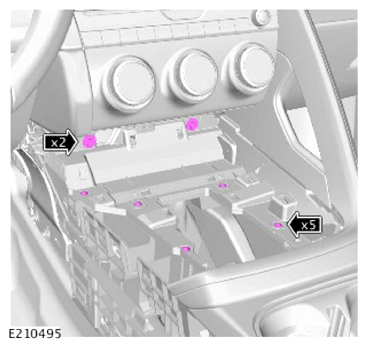

- Remove the 2 instrument panel center carrier bolts.
- Remove the 5 instrument panel center carrier screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 instrument panel center carrier screws.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

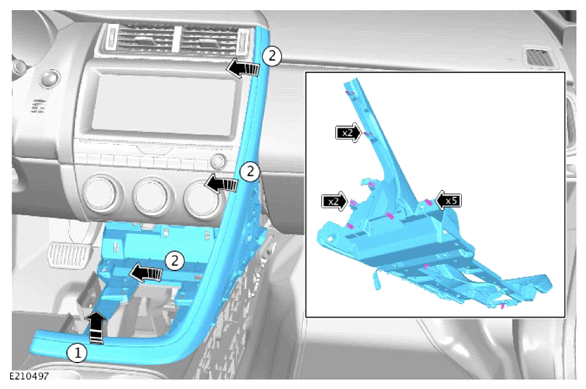

Remove the instrument panel center carrier.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

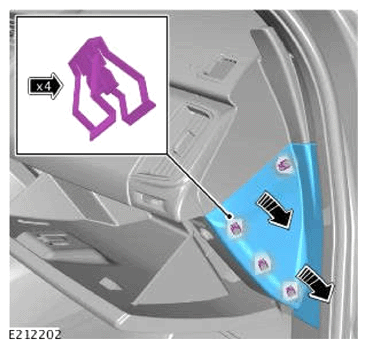

Remove the instrument panel side trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

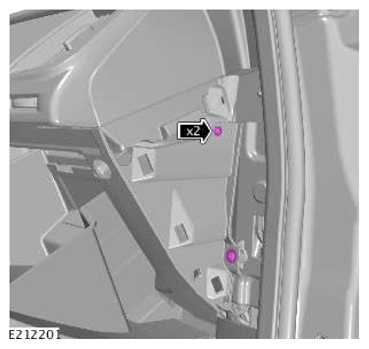

Remove the 2 glovebox side screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

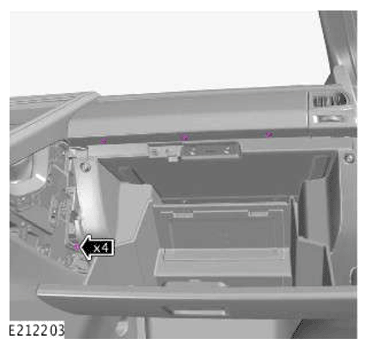

Remove the 4 glovebox screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

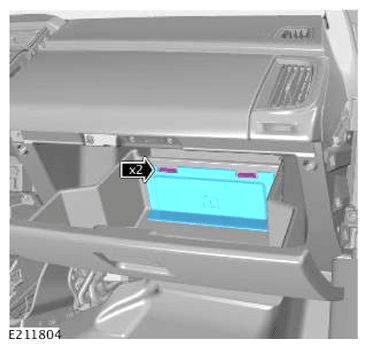

Remove the access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

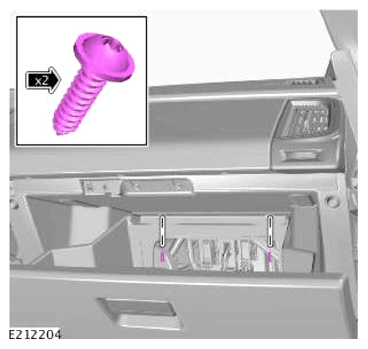

Remove the 2 glove box inner screws.
CAUTION:
- Make sure the wiring harness and electrical connectors are not damaged during this operation.
- Take extra care not to damage the surrounding components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

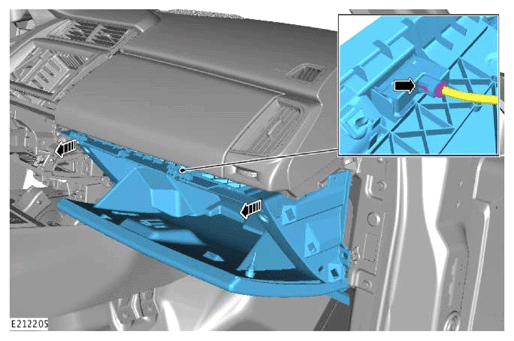

- Release the glovebox.
- Disconnect the electrical connector.
- Remove the glovebox.
