Instrument Cluster (G2165957): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • 19MY onward and non-NAS markets only - if a new instrument cluster is to be installed, a new Remote Function Actuator (RFA) may be required. All vehicle keys must be presented to complete the RFA  renewal.
  1. NOTE: Only complete this step if a new instrument cluster is to be installed.

    Use the Jaguar approved diagnostic equipment to collect information from the instrument cluster.

    General Equipment: Jaguar diagnostic equipment

  2. CAUTION: If the software number is K8D2-14C104-AC or L8B2-14C104-AC, a new RFA  will be required.
    NOTE:
    • This step is only applicable to 19MY onward vehicles.
    • Non-NAS Markets only.

    Using the Jaguar diagnostic equipment, read the RFA  software number.

    General Equipment: Jaguar diagnostic equipment

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

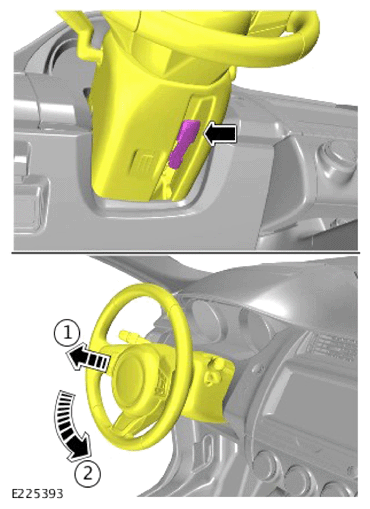

  4. G13899375Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the steering column to its lowest position.

  5. CAUTION: Use a suitable trim tool.
    G12559785Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the steering column upper trim.

  6. CAUTION: Take extra care not to damage the wiring harnesses.
    G12559786Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the instrument cluster surrounding trim.

  7. G12559787Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the instrument cluster surrounding trim.
  8. CAUTION: Use a suitable trim tool.

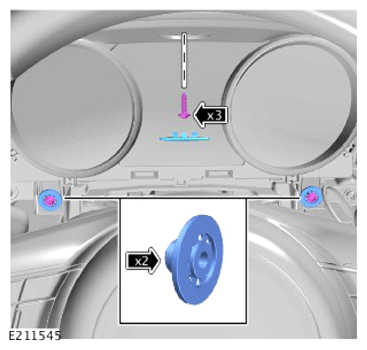

    G13899379Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the screw cover.
    • Remove the 3 screws.
    • Remove the 2 spacers.

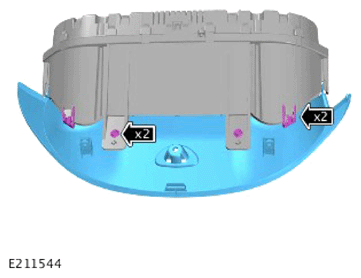

  9. G13899380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the two screws.
    • Release the 2 clips.
    • Remove the instrument cluster upper cover.
  10. CAUTION: Take extra care not to damage the wiring harnesses.

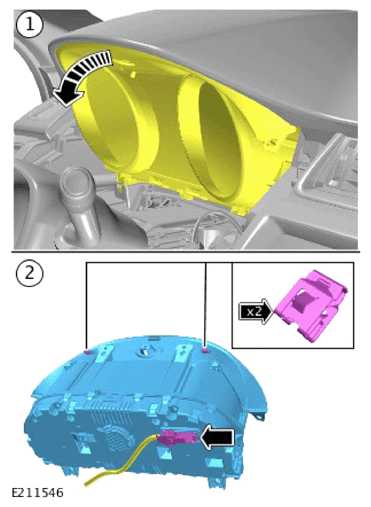

    G13899381Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the instrument cluster assembly.
    • Disconnect the electrical connector.
    • Remove the instrument cluster assembly.
