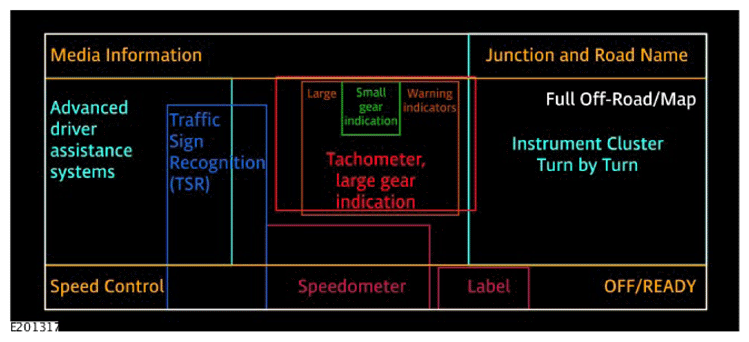

Head Up Display - Zone Layout
NOTE:
Not all the information below will be displayed at the same time, zone displays will be shown based on prioritization and/or boundary overlap.
The following zones can be displayed in the Head Up Display (HUD):
- Speedometer zone - Vehicle speed value
- Label zone - Speed units
- Large warnings zone - Forward alert, driver intervene
- Advanced driver assistance systems zone:
- Lane Departure Warning (LDW)/Lane Keep Assist (LKA) tracking.
- LDW/LKA alert
- LDW/LKA idle/off
- Adaptive speed control gap setting and follow mode.
- Steering control
- Side swipe (blind spot monitoring system function).
- Traffic jam assist/integrated cruise assist.
- Set speed info zone - Speed control, Adaptive Speed Limiter (ASL)
- Junction and road name zone - Navigation next road name
- Turn by turn zone - Navigation display, navigation video display
- Traffic Sign Recognition (TSR) and Traffic Sign Recognition (TSR) zone - Warning signs, vehicle speed units/value, overtake, speed text, sign type
- Small gear display zone - Gear state
- Tachometer and large gear display zone - Large gear position, gear upshift indicator
- Full off road/map zone - Full screen.
When selected the HUD feature projects the following driver information display onto the inside of the windshield:

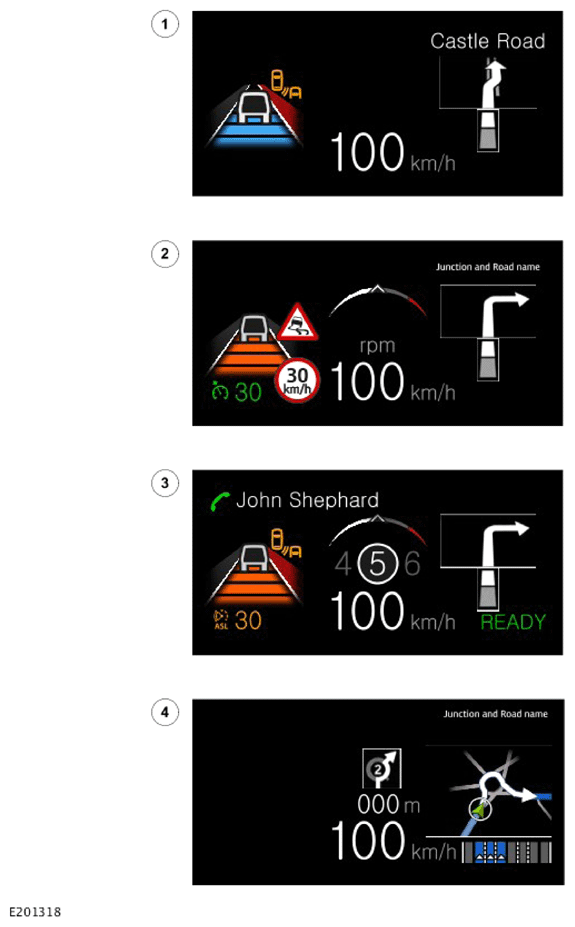

Head Up Display - Display Themes
| ITEM | DESCRIPTION |
|---|---|
| 1 | Lane Departure Warning (LDW), vehicle speed, navigation next road name |
| 2 | Adaptive speed limiter, Traffic Sign Recognition (TSR), vehicle speed, navigation |
| 3 | Speed limiter, LDW, vehicle speed, gear position |
| 4 | Junction and road name zone |
