Component Location
NOTE:
Only vehicles fitted with a full-size spare wheel are equipped with a tire pressure sensor in the spare wheel.

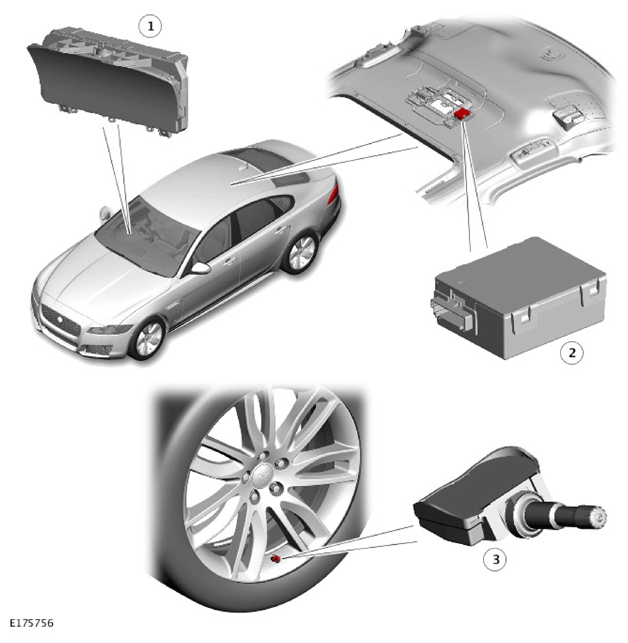

Tire Pressure Monitoring System (TPMS)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | Tire Pressure Monitoring System Control Module (TPMSCM) |
| 3 | Tire Pressure Sensor - 4 quantity (or 5 if a full-size spare wheel is fitted) |
