Stop/Start Switch

WARNING: This page is about a different variant/trim than selected.

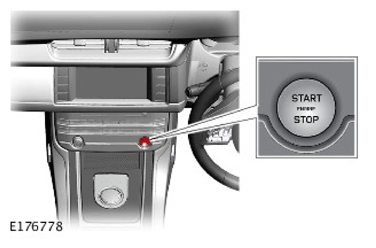

G11327863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The stop/start switch is installed in the Integrated Control Panel (ICP) and is hardwired to the Body Control Module/Gateway Module (BCM/GWM) assembly. When the switch is pressed two signal lines from the BCM/GWM assembly are connected to ground.
