Auto Stop/Start Switch

WARNING: This page is about a different variant/trim than selected.

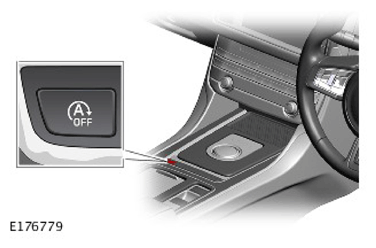

G11327850Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The auto stop/start switch is located in the Jaguar Drive Switchpack (JDS), which is located in the floor console. An amber Light Emitting Diode (LED) in the auto stop/start switch remains illuminated while the auto stop/start system is active. The auto stop/start switch sends a signal to the BCM/GWM assembly using the HS CAN comfort system bus, to inform the BCM/GWM assembly when on or off.
