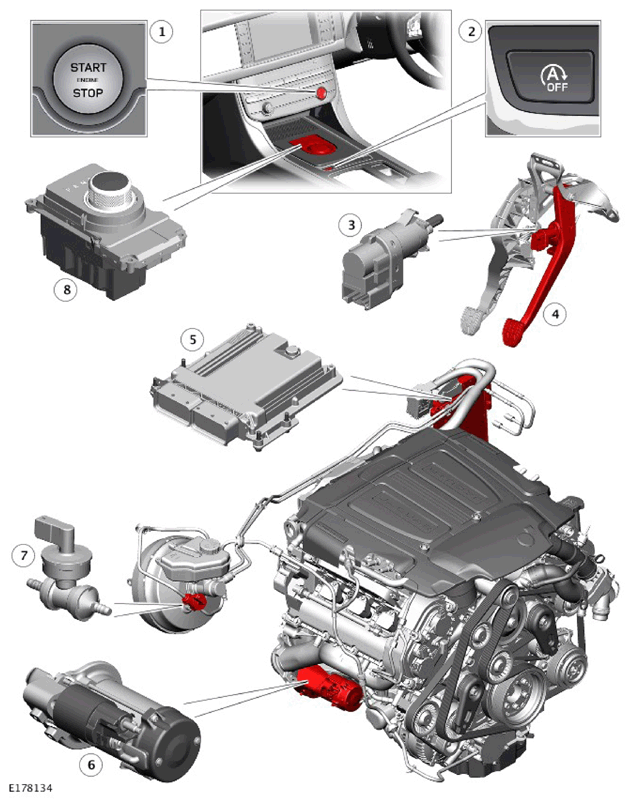

Component Location - 2 Of 2 - Starting System, Vehicles With Auto Stop/Start
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Stop/start switch |
| 2 |
Auto Stop/start switch |
| 3 |
Brake pedal switch |
| 4 |
Accelerator Pedal Position (APP) sensor |
| 5 |
Powertrain Control Module (PCM) |
| 6 |
Starter motor |
| 7 |
Brake vacuum switch |
| 8 |
Transmission Control Switch (TCS) |
