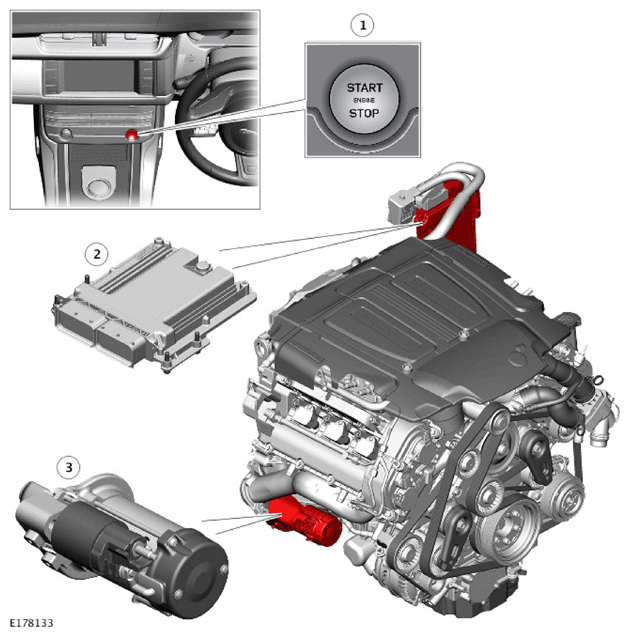

Component Location - 1 Of 2 - Starting System, Vehicles Without Auto Stop/Start

WARNING: This page is about a different variant/trim than selected.
G11327875Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Stop/start switch
2 Powertrain Control Module (PCM)
3 Starter motor
