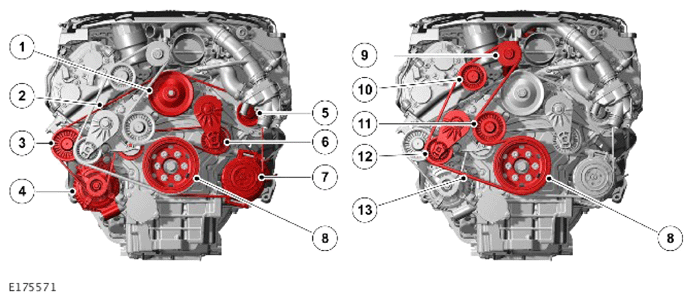

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| A | Primary accessory drive |
| B | Secondary accessory drive |
| 1 | Engine coolant pump drive pulley |
| 2 | Idler pulley |
| 3 | Generator drive pulley |
| 4 | Tensioner assembly |
| 5 | Crankshaft pulley |
| 6 | Primary drive belt |
| 7 | Idler pulley |
| 8 | Air conditioning (A/C) compressor pulley |
| 9 | Supercharger drive pulley |
| 10 | Idler pulley |
| 11 | Tensioner assembly |
| 12 | Idler pulley |
| 13 | Secondary drive belt |
