Rear Silencer - Long Wheelbase (G1942450): Removal

The following step(s) applies to:

All vehicles

1. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

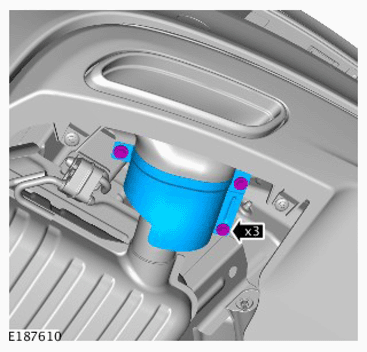

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 11 Nm

   The following step(s) applies to:

   Vehicles with 3.0L petrol engine

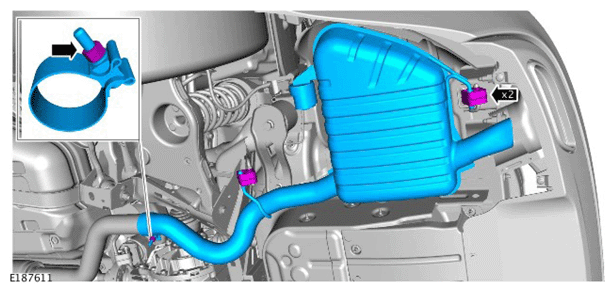

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 55 Nm

   The following step(s) applies to:

   Vehicles with 2.0L petrol engine

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 55 Nm

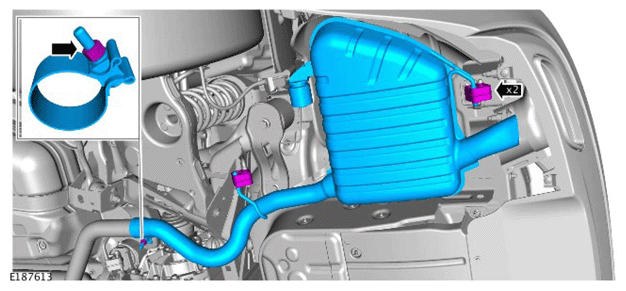

5. CAUTION: Make sure that a new bolt is installed.
   NOTE: Do not disassemble further if the component is removed for access only.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 22 Nm

   The following step(s) applies to:

   Vehicles with 3.0L petrol engine

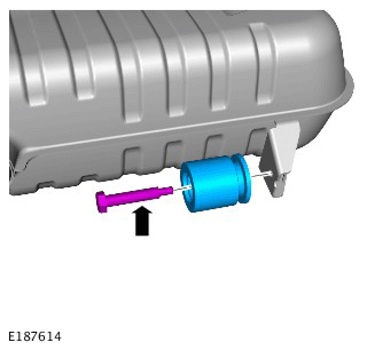

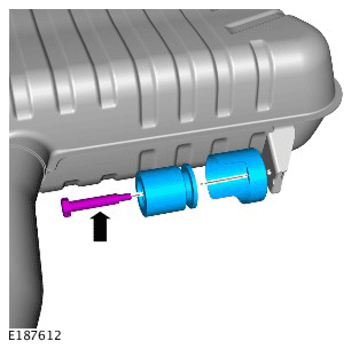

6. CAUTION: Make sure that a new bolt is installed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 22 Nm
