V6 3.0L SC Petrol Engine Exhaust System
WARNING: This page is about a different variant/trim than selected.
NOTE:
Rear Wheel Drive (RWD) shown, All Wheel Drive (AWD) similar

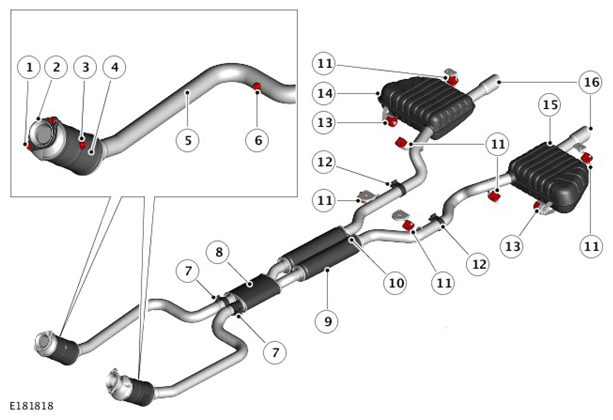

| ITEM | DESCRIPTION |
|---|---|
| 1 | Stud (4 off) and nut (4 off) |
| 2 | Exhaust mounting flange to turbocharger (2 off) |
| 3 | Mid-Catalyst Heated Oxygen Sensor (HO2S) mounting boss (2 off) |
| 4 | Catalytic converter (2 off) |
| 5 | Outlet pipe (2 off) |
| 6 | Post-Catalyst HO2S mounting boss (2 off) |
| 7 | Clamp (2 off) |
| 8 | Center silencer |
| 9 | Center resonator |
| 10 | Exhaust brace |
| 11 | Rubber mountings (6 off) |
| 12 | Clamp (2 off) |
| 13 | Mass damper (2 off) |
| 14 | Right rear silencer |
| 15 | Left rear silencer |
| 16 | Outlet pipe finisher (2 off) |
