Upper Timing Cover (G2385450): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT (G1820724)
Remove the electric thermostat.
Refer to: ELECTRIC THERMOSTAT .
Remove the High Pressure (HP) fuel rail supply line.
Refer to: FUEL RAIL SUPPLY PIPE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

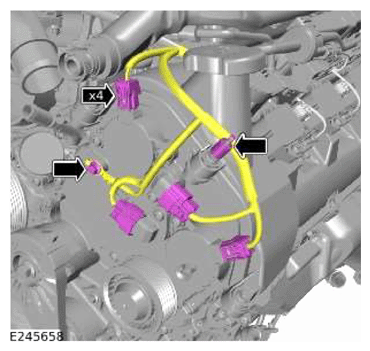

- Disconnect the 4 electrical connectors.
- Release the wiring harness clip.
- Remove the bolt.
- Reposition the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

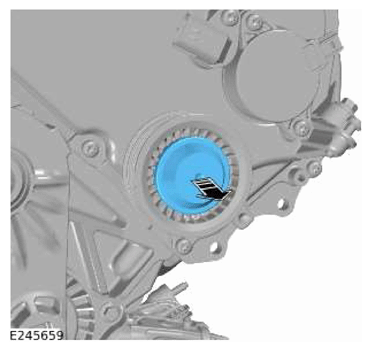

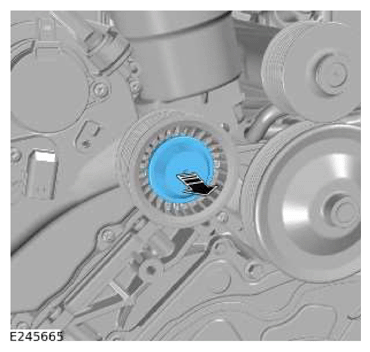

Remove the left accessory drive belt pulley cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

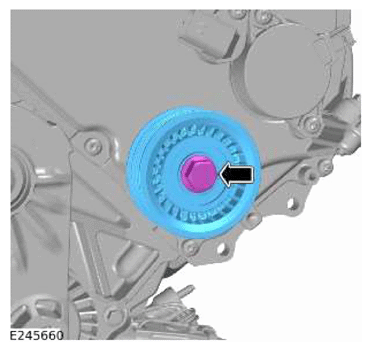

- Remove the bolt.
- Remove the left accessory drive belt pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

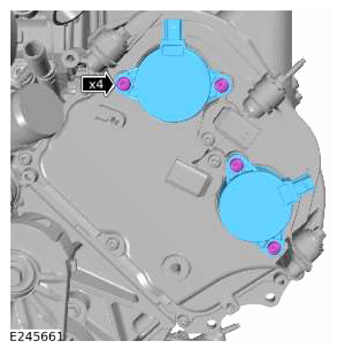

- Remove the 4 bolts.
- Remove the 2 Variable Camshaft Timing (VCT) solenoids.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

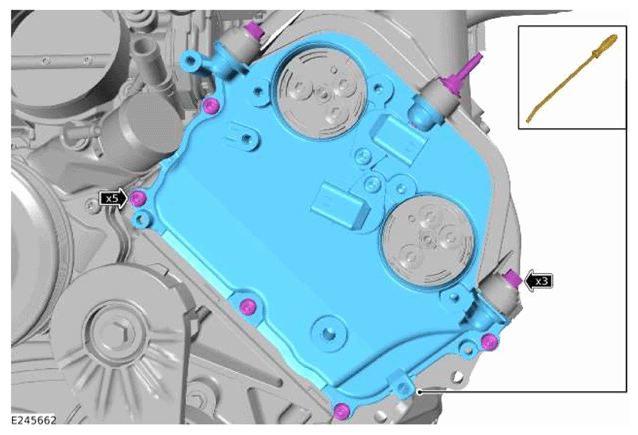

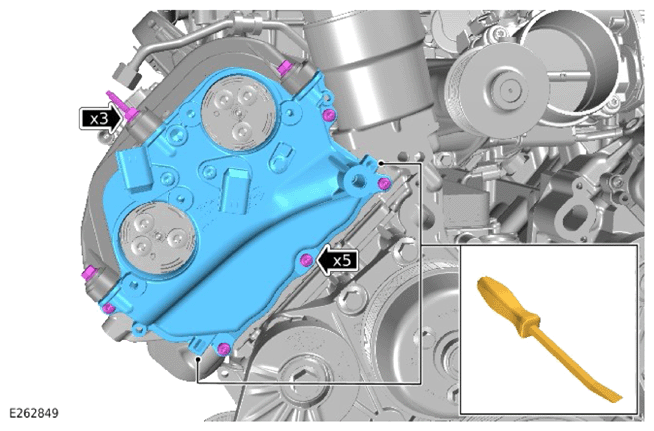

- Remove the 8 bolts.
- Use a suitable tool to pry the upper timing cover away at the location shown in the illustration.
- Remove the upper timing cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the 2 Camshaft Position Sensor (CMP) sensors.
- Remove and discard the 2 CMP O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

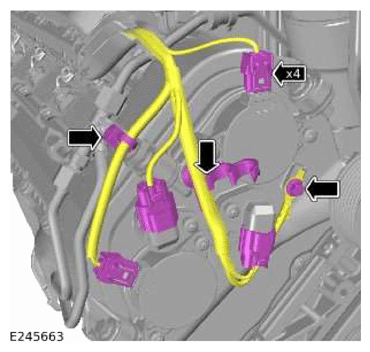

- Disconnect the 4 electrical connectors.
- Release the 2 wiring harness clips.
- Remove the bolt.
- Reposition the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right accessory drive belt pulley cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

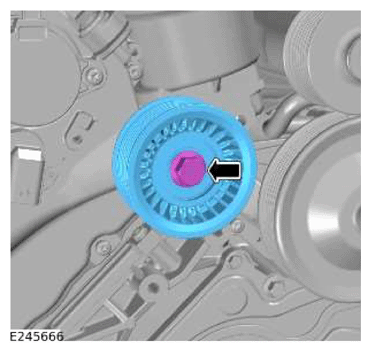

- Remove the bolt.
- Remove the right accessory drive belt pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

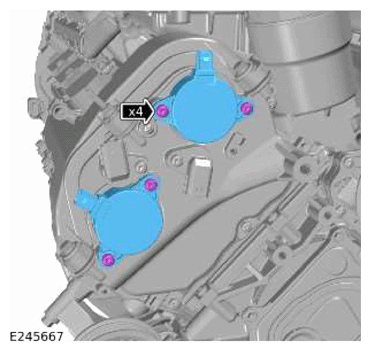

- Remove the 4 bolts.
- Remove the 2 VCT solenoids.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 8 bolts.
- Use a suitable tool to pry the upper timing cover away at the location shown in the illustration.
- Remove the upper timing cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Remove the 2 CMP sensors.
Remove and discard the 2 CMP O-ring seals.
