Right Exhaust Manifold (G2272641): Removal

The following step(s) applies to:

All vehicles

1. Raise and support the vehicle on a suitable 2 post lift.

   Refer to: LIFTING .

2. Disconnect the startup battery ground cable.

   Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

3. Remove the accessory drive belt.

   Refer to: ACCESSORY DRIVE BELT (G1820724)

4. Remove the right catalytic converter.

   Refer to: RIGHT CATALYTIC CONVERTER - RWD .

   Refer to: RIGHT CATALYTIC CONVERTER - AWD .

5. Remove the right engine mount.

   Refer to: RIGHT ENGINE MOUNT (G1850991)

   The following step(s) applies to:

   Vehicles with Gasoline Particulate Filter (GPF)

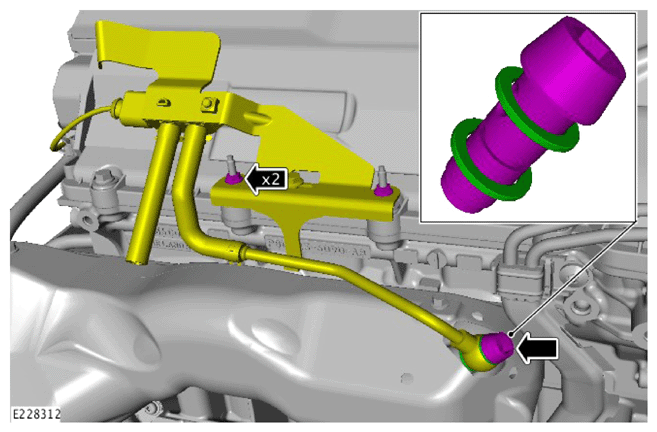

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Remove the banjo bolt.
   • Remove and discard the 2 Gasoline Particulate Filter (GPF) differential pressure sensor washers.
   • Remove the 2 nuts from the bracket.
   • Reposition the GPF differential pressure sensor away from the exhaust manifold.

   The following step(s) applies to:

   All vehicles

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Disconnect the catalyst monitor sensor electrical connector.
   • Release the catalyst monitor sensor wiring from the 2 clips.

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Remove the 3 bolts.
   • Remove the accessory drive belt pulley assembly.

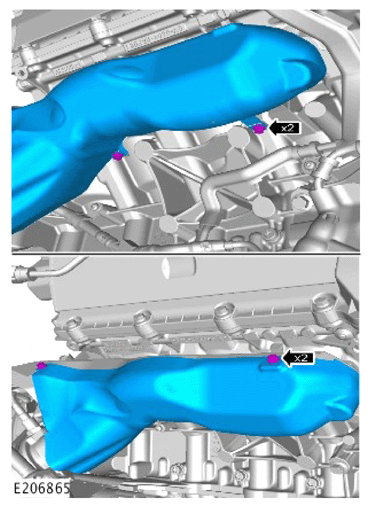

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Remove the 4 exhaust manifold heatshield bolts.
   • Remove the exhaust manifold heatshield.
10. NOTE: Make sure that the position of the spacers is noted before removal of the manifold.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove and discard the 6 bolts and remove the 6 spacers.
    • Remove the exhaust manifold and discard the gasket.
11. NOTE: Do not disassemble further if the component is removed for access only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

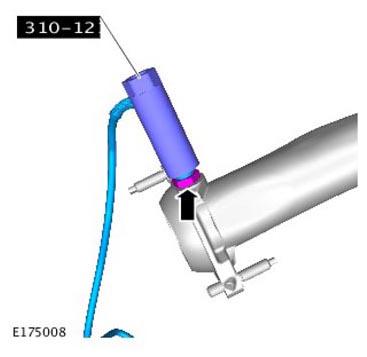

    Using the special tool remove the catalyst monitor sensor.

    Special Tool(s): 310-121
