Oil Pan (G1850993): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: A new O-ring seal is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

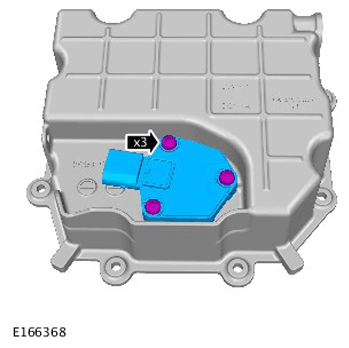

Renew Part: Oil level gauge O-ring seal Quantity: 1 .

Torque : 12 Nm
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Use only a plastic scraper when removing the sealing material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown, and tighten the bolts within 7 minutes.
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Oil Pan Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1850998)
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
