Oil Cooler (G1557024): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  4. Refer to: SUPERCHARGER .

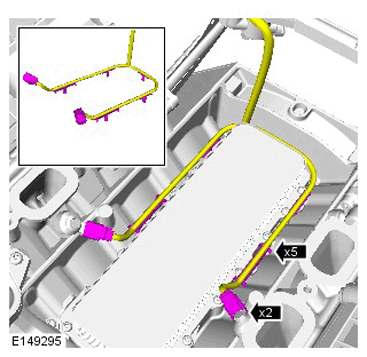

  5. G11286690Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION:
    • Be prepared to collect escaping oil.
    • Be prepared to collect escaping coolant.

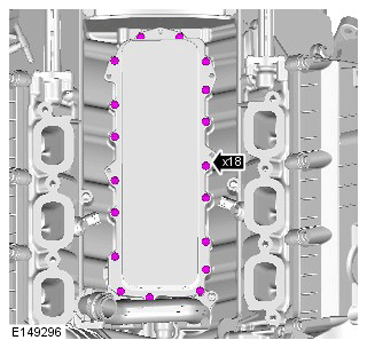

    G11286691Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION:
    • Make sure that these components are installed to the noted removal position.
    • Be prepared to collect escaping coolant.
    • Be prepared to collect escaping oil.
    NOTE: Discard the gasket.

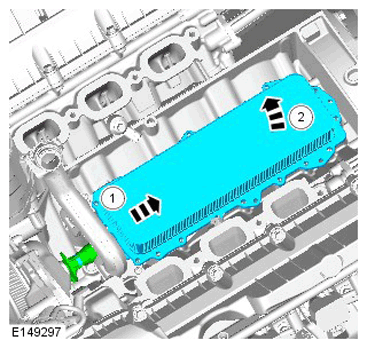

    G11286692Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: Discard O-ring seals.
    G11285129Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
