Oil Cooler (G1557024): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that these components are installed to the noted removal position.

NOTE: Install new seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil cooler O-ring seals Quantity: 1 .
CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE: Install a new gasket.

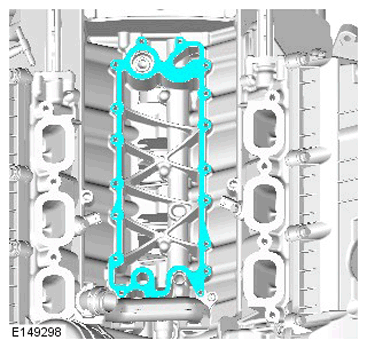

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil cooler gasket Quantity: 1 .
CAUTION:
- Install all the bolts finger tight before final tightening.
- Make sure that the area around the component is clean and free of foreign material.
NOTE: Tighten the bolts in the indicated sequence.

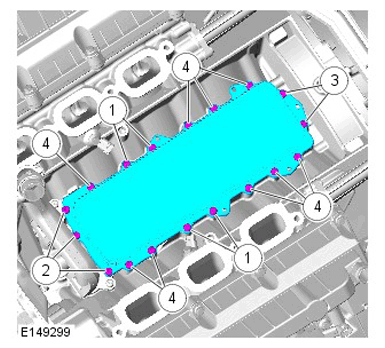

Fig 1: Oil Cooler Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

To install, reverse the removal procedure.

Torque : 13 Nm
