Left Engine Mount (G1850990): Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD .

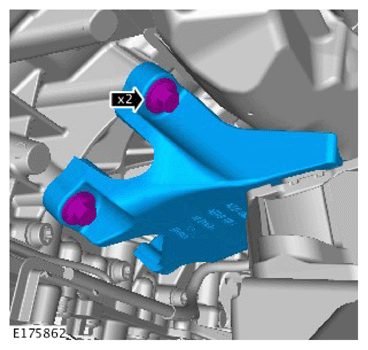

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Using a suitable tie strap, position and secure the component to one side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack, support the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
