Electric Oil Pump (G1851001): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: A new O-ring seal is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate the new O-ring seal.

Renew Part: Oil pump O-ring seal Quantity: 1 .
CAUTION:
- Install the component shown in the sequence shown.
- Take extra care not to damage the seal when installing the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Lubricate the oil pump connector bore with clean engine oil. Do not lubricate the O-ring seal.
- Take extra care when installing the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that a new bolt is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil pump connector bolt Quantity: 1 .

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
CAUTION: A new O-ring seal is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate the new O-ring seal.

Renew Part: Oil pick up pipe O-ring seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool, compress the timing chain tensioner.
CAUTION: Using a suitable tool, lock the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

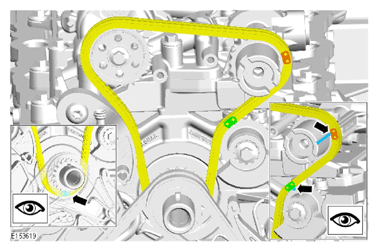

- Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance weight and crankshaft sprocket markings.
CAUTION: Take extra care not to damage the oil jet.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the oil jet.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Use only a long torx socket or torx driver. Do not use a small torx socket, as it may damage the timing chain.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Hold the bolt with a magnet to prevent it from dropping.

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Rotate the crankshaft a full turn clockwise to settle the components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The piston should apply tension to the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply tension then adjust the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The piston should eject slightly, and an audible click should be heard.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If the piston can be pushed back, repeat steps 19- 22 to reset the tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If the piston will not retract, and tension is on the chain. The tensioner is correct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Hold the bolt with a magnet to prevent it from dropping.

Torque : 10 Nm
NOTE: Make sure that all traces of the old sealant are removed from the mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Take extra care not to damage the seal when installing the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Tighten the retaining bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: OIL PAN EXTENSION (G1850994)
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
