Fuel Pump Camshaft Timing Check (G1851629): Check

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD .
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1850998)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft position sensor.
CAUTION:
- Only rotate the crankshaft clockwise.
- Make sure that the crankshaft is fully locked.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool lock the crankshaft.

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable marker, mark the position of the crankshaft pulley as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

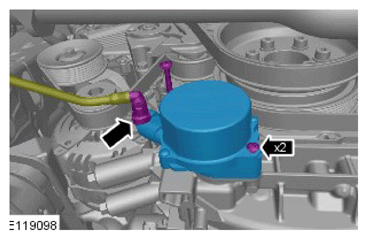

Remove the brake vacuum pump and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully adjust the crankshaft position to allow correct installation of the special tool.

Special Tool(s): JLR-303-1621
CAUTION: Do not use excessive force when adjusting the crankshaft position.

NOTE: If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): JLR-303-1621
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new seal and the brake vacuum pump.

Renew Part: Brake vacuum pump O-ring seal Quantity: 1 .

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the crankshaft position sensor.

Torque : 10 Nm
Fill the engine oil
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1850998)
Install the air deflector.
Refer to: ENGINE UNDERSHIELD .
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
