Engine Oil Vacuum Draining And Filling (G1850998): Draining

WARNING: This page is about a different variant/trim than selected.

WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.

CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.

NOTE:

Make sure that the vehicle is parked on level ground.
Clean the components general area prior to dismantling.
Some variation in the illustrations may occur, but the essential information is always correct.
Engine oil vacuum draining and filling is the recommended procedure for engine oil change during a scheduled service. Scheduled service labour times are calculated using this method.

CAUTION: Make sure the engine is warm.

Start the engine and allow to run for 10 minutes, stop the engine.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL .
CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

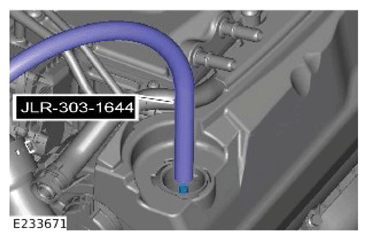

- Using the oil vacuum pump drain the oil out through the oil extraction tube.
  Special Tool(s): JLR-303-1644
Remove the oil vacuum pump.
NOTE: Remove and discard the O-ring seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Remove and discard the oil filter element.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
