Variable Camshaft Timing (VCT) Solenoids
WARNING: This page is about a different variant/trim than selected.
The VCT solenoids control the position of the spool valves in the VCT units.

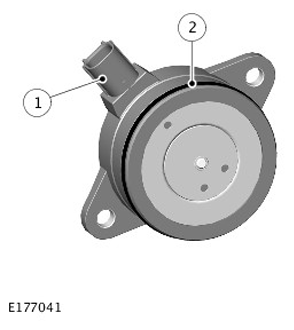

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric connector |
| 2 | O-ring |
The VCT solenoids control the position of the spool valves in the VCT units.
The VCT solenoids are installed in the front upper timing covers, immediately in front of their related VCT units. Each VCT solenoid is secured with two screws and sealed with an O-ring. A two pin electrical connector provides the interface with the engine harness.
Each VCT solenoid incorporates a spindle that acts on the spool valve in the related VCT unit to advance and retard the camshaft timing. The VCT solenoids operate independently and are controlled by a Pulse Width Modulation (PWM) signal from the PCM.
