Rear Coolant Manifold (G2368790): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Partially drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL
Remove the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

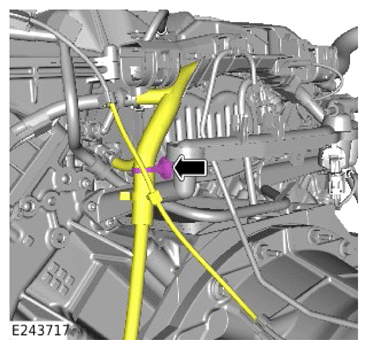

Release the vacuum pipe from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

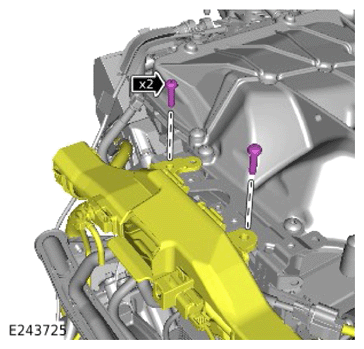

- Remove the 2 bolts.
- Reposition the wiring harness away from the rear coolant manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

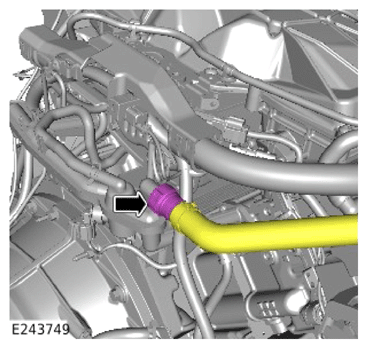

Disconnect the right side coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

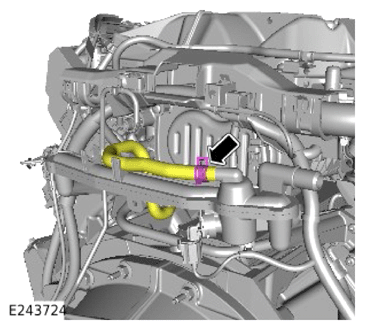

- Release the coolant hose clip.
- Disconnect the rear coolant manifold left hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

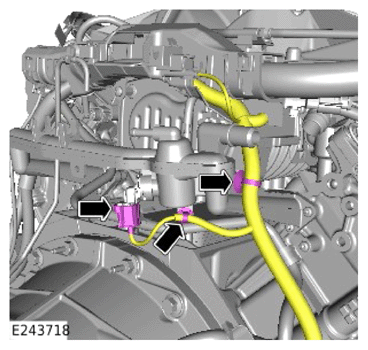

- Disconnect the electrical connector.
- Release the 2 wiring harness clips from the right side of the rear coolant manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

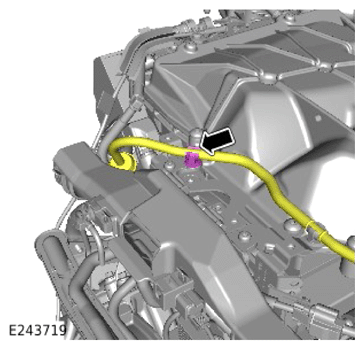

Release the wiring harness clip from the left side of the rear coolant manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

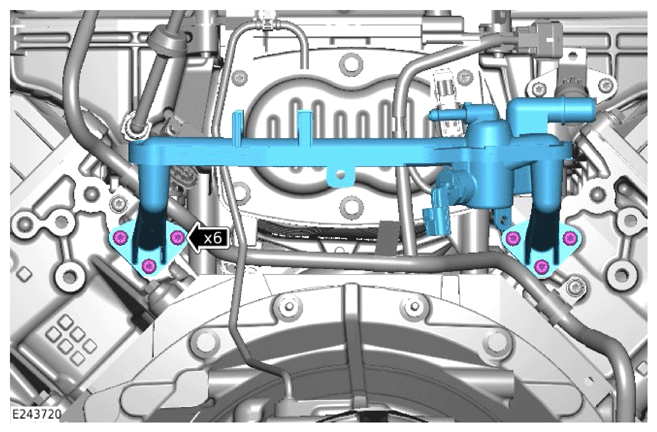

- Remove the 6 bolts.
- Remove the rear coolant manifold.
NOTE: This step is only required if new components are not installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

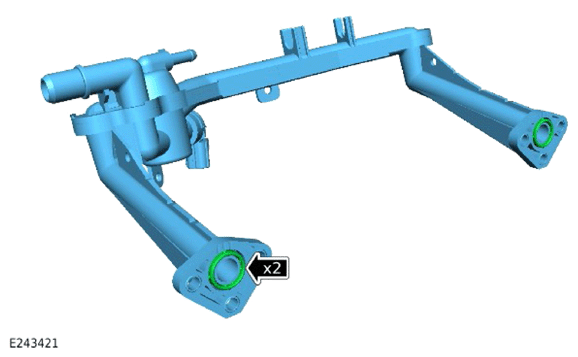

Remove and discard the 2 O-ring seals.
