Cooling System Partial Draining And Vacuum Filling (G1885696): Draining

WARNING: This page is about a different variant/trim than selected.

WARNING: Injury such as scalding could be caused by escaping steam or coolant. Make sure the vehicle cooling system is cool prior to carrying out this procedure.

CAUTION:

The engine cooling system must be maintained with the correct concentration and type of engine coolant solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

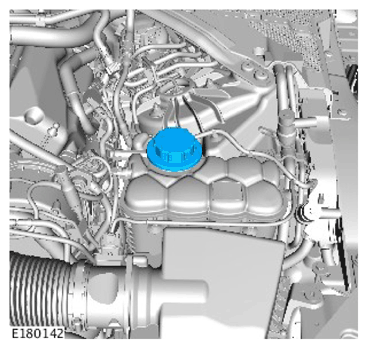

WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: RADIATOR SPLASH SHIELD

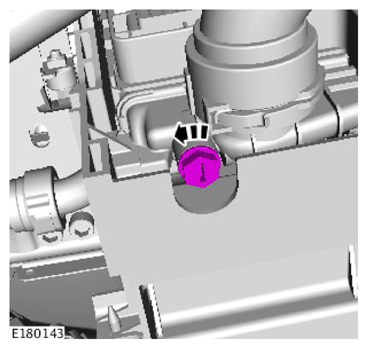

CAUTION: Be prepared to collect escaping coolant.

NOTE: Collect the coolant in a clean container and reuse.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Allow the coolant to drain into a suitable container.
