Component Location - Sheet 3 Of 3 - Cylinder Block Heater

WARNING: This page is about a different variant/trim than selected.

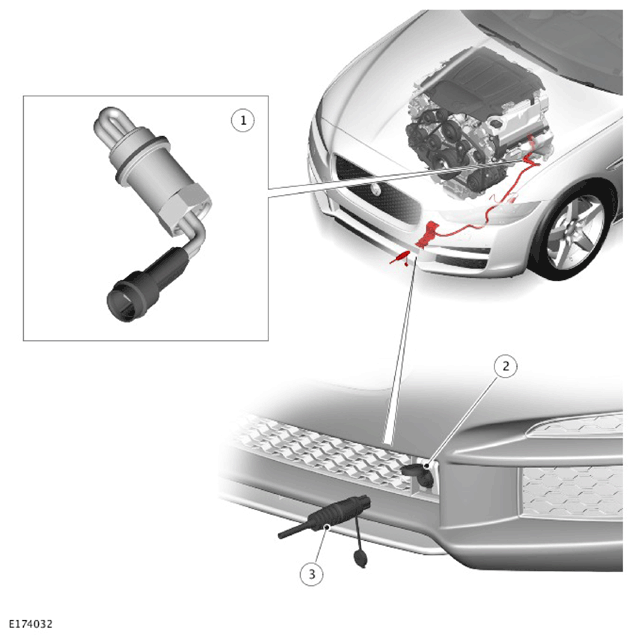

G11307184Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Heater element
2 Vehicle connector
3 Power supply external plug
