Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. G11284265
    • Clean and inspect the components for deterioration.
    • Pack the outer CV joint with the grease supplied.
    • Install the outer CV boot.
  2. Make sure the outer CV boot is correctly fitted.
    G11284266
  3. Install the 2 retaining clips using the special tool.
    NOTE: Make sure the retaining clip is correctly seated.
    G11305887

    Install the Special Tool(s):  100-050

  4. Install the inner CV boot and retaining clip.
    NOTE: Use new retaining clips.
    G11284247

    Renew Part: Inner constant velocity joint boot kit Quantity: 1.

  5. Install the retaining clip.
    G11284243

    Renew Part: Circlip Quantity: 1.

  6. Install the inner CV joint.
    G11284271
  7. Install the 2 retaining clips using the special tool.

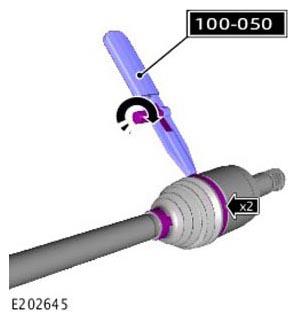

    G11305891

    Install the Special Tool(s):  100-050

  8. Install the front halfshaft.

    Refer to: Front Halfshaft .
