Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
LH illustration shown, RH is similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
Remove the front halfshaft
Refer to: Front Halfshaft .
Remove and discard the 2 retaining clips.
Position the halfshaft in a vice as illustrated.
CAUTION: Use suitable protective covers to protect the halfshaft.

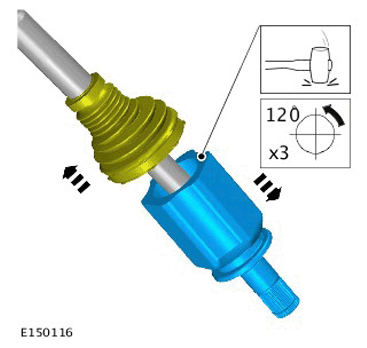

Remove the inner constant velocity joint using a soft faced hammer.
Using a suitable tool mark the position of the component.
NOTE: Note the orientation of the component prior to removal.
Remove and discard the retaining clips.
NOTE: Clean all the mating faces and reusable parts thoroughly and check for damage.

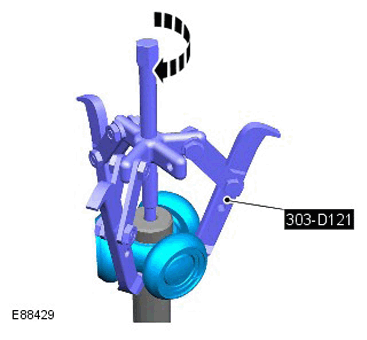

- Remove the bearings using a suitable puller.
  Special Tool(s): 303-D121
Remove and discard the inner constant velocity (CV) joint boot.
CAUTION: Discard the component.
