Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the CV joint boot and retaining clip.
    G11284247

    Renew Part: Inner constant velocity joint boot kit Quantity: 1.

  2. Install a new retaining clip.
    NOTE: Make sure that the component is installed to the position noted on removal.
    G11284243

    Renew Part: Circlip Quantity: 1.

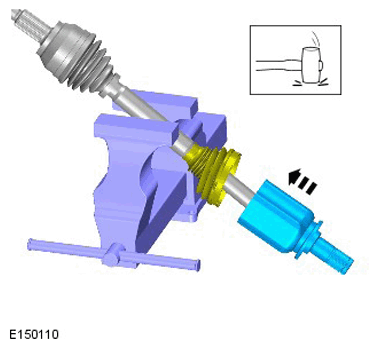

  3. Install the Inner (CV) joint.
    G11284271

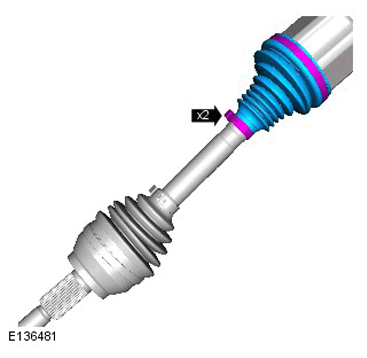

  4. G11284251
    • Pack the inner CV joint with the grease supplied.
    • Install the 2 retaining clips.
  5. Install the front halfshaft.

    Refer to: Front Halfshaft .
