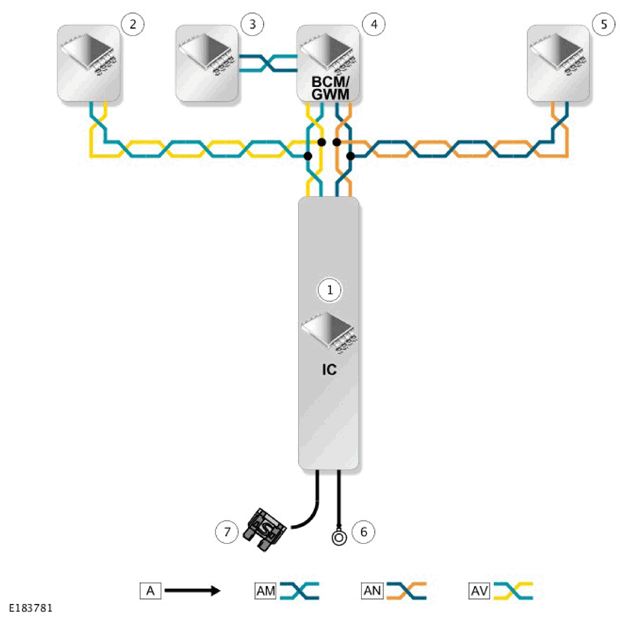

Control Diagram - Information And Message Center
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS; AV = HIGH SPEED NETWORK (CAN) POWERTRAIN SYSTEMS BUS; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | Other system modules on High Speed (HS) Controller Area Network (CAN) comfort systems bus |
| 3 | Other system modules on High Speed (HS) Controller Area Network (CAN) chassis systems bus |
| 4 | Body Control Module/Gateway Module (BCM/GWM) Assembly |
| 5 | Other system modules on High Speed (HS) Controller Area Network (CAN) powertrain systems bus |
| 6 | Ground |
| 7 | Power supply |
