Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103

SPECIAL TOOL(S)

G11284042
 205-932
Remover, Driveshaft
G11314090
 303-021
Engine support bracket
G11285508
 303-1435
Engine Lifting Brackets Rear

GENERAL EQUIPMENT

EQUIPMENT NAME
Transmission jack

Procedure

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Removal and Installation).
  3. Refer to: Cowl Vent Screen (Removal and Installation).
  4. G11292025
  5. G11292026
  6. G11292027
    • Special Tool(s):  303-1435
    • Torque Specification: 40 Nm
  7. G11287264

    Special Tool(s):  303-021

  8. Refer to: Front Driveshaft - AWD (Removal and Installation).
  9. Refer to Exhaust System - Vehicles With: Diesel Exhaust Fluid or Exhaust System - Vehicles Without: Diesel Exhaust Fluid (Removal and Installation).
  10. G11286657
  11. G11286674
  12. WARNING: Be prepared to collect escaping fluids
    CAUTION:
    • Remove and discard the O-ring seals.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11291983
  13. G11292264
  14. G11292265
  15. NOTE: This step is only required if a new component is installed.
    G11292004
  16. CAUTION: Discard the bolt.
    G11292267
  17. G11291670
  18. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Discard the bolts.
    G11292269
  19. G11284090
  20. G11284094
    • Secure with a cable tie.
  21. G11284091
  22. G11284092
  23. CAUTION: Discard the nuts.
    G11284093
  24. CAUTION: Discard the bolts.
    NOTE: Mark the position of the driveshaft on the transmission flange.
    G11284095
  25. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    NOTE:
    • Make sure that the special tool is correctly installed to the recess on the driveshaft.
    • Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
    G11284096

    Special Tool(s):  205-932

  26. G11292093
    • Remove the cable tie.
  27. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11292278

    Using a suitable hydraulic jack, support the transmission.

    General Equipment:  Transmission jack

  28. G11314114
  29. CAUTION: Make sure that the transmission is lowered to the value indicated in the illustration.
    G11292280
  30. NOTE: Secure with cable ties.
    G11292281
  31. G11292282

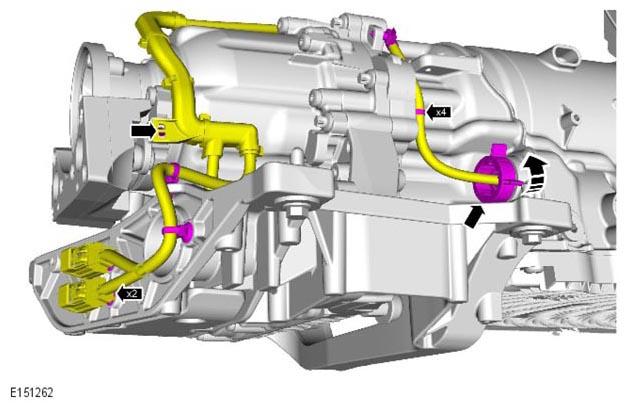

  32. G11292283
  33. NOTE: Secure with cable ties.

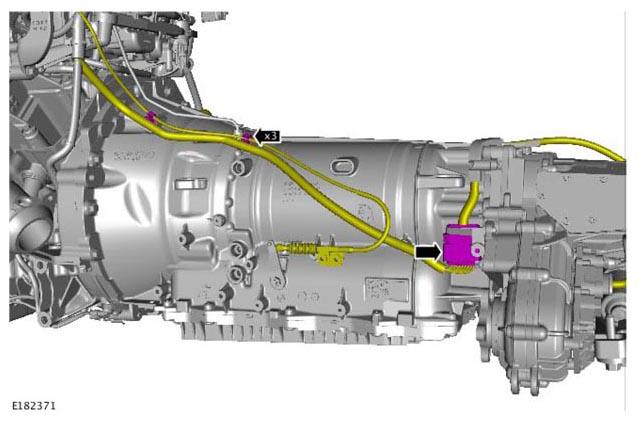

    G11314119
  34. G11292285
  35. G11292286
  36. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.

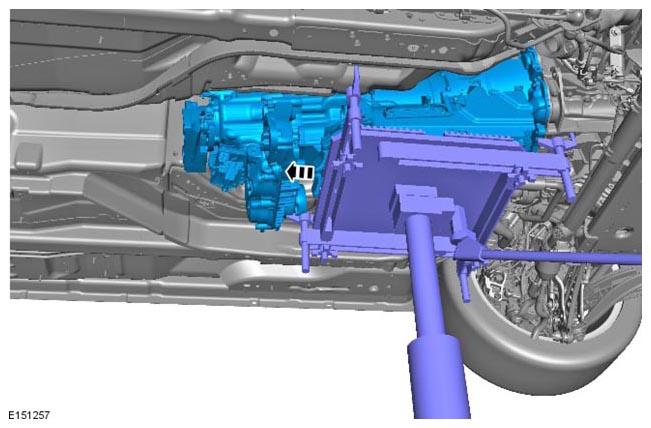

    G11292287
    • Secure the torque converter to the transmission using suitable cable ties.
