Removal And Installation: Installation
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD | 6.7 |
| 37.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID | 3.5 |
| 37.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID | 3.1 |
| 37.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER | 3.3 |
| 86.75.50 | FRONT SEAT TRACK MOTOR - RENEW | ALL DERIVATIVES | 1.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD | 6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD | 7 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD | 5.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD | 6.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD | 5.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD | 5.9 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM PETROL, 2WD | 3.8 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM PETROL, 4WD | 3.8 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 3000 CC, AJ V6 (AJ126), 2WD | 3.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 3000 CC, AJ V6 (AJ126), 4WD | 4.3 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID | 6.3 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD | 6.7 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD | 6.2 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID | 5.8 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) | 6 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM PETROL, 2WD | 4.1 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM PETROL, 4WD | 4.5 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 3000 CC, AJ V6 (AJ126) | 3.8 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 3000 CC, AJ V6 (AJ126), 4WD | 4.5 |
Special Tool(s)
| 303-021 Engine support bracket |
|
| 303-1435 Engine Lifting Brackets Rear |
General Equipment
| EQUIPMENT NAME |
|---|
| Transmission jack |
Procedure
CAUTION:
New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some illustrations may show the transmission removed for clarity.
-
NOTE: Make sure that the torque converter is fully engaged to the transmission.
-

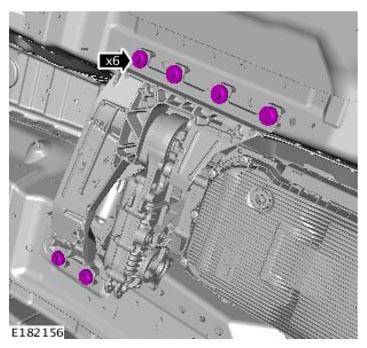

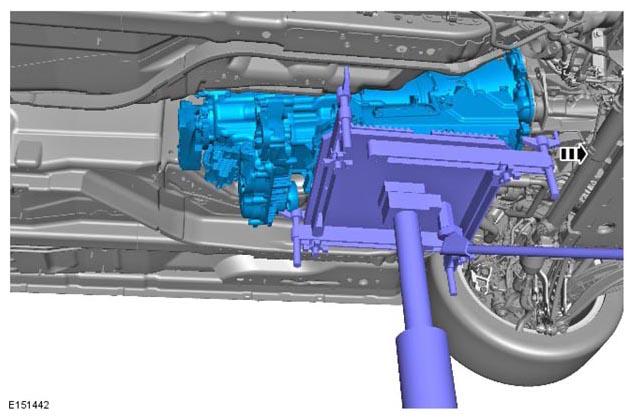

WARNING:
- This step requires the aid of another technician
- Make sure that the transmission is secured with suitable retaining straps.
CAUTION:- Make sure that the torque converter remains in the transmission.
- Apply grease of the correct specification to the torque converter spigot.

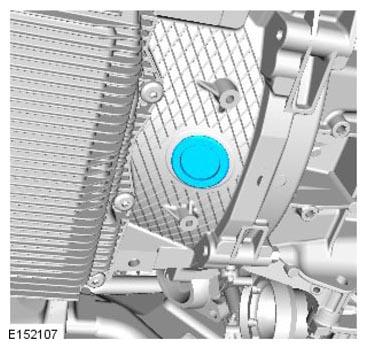

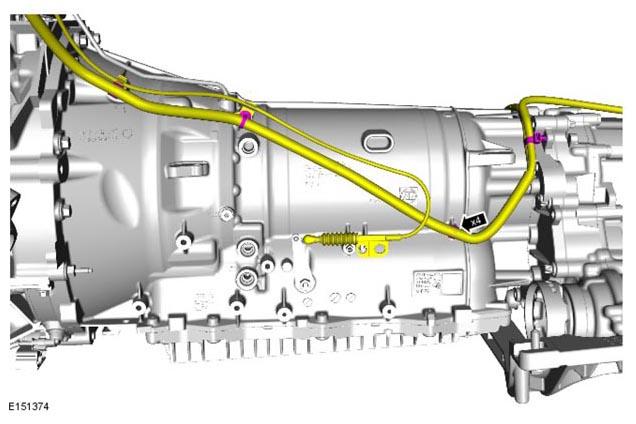

- Remove the 4 cable ties.
General Equipment: Transmission jack

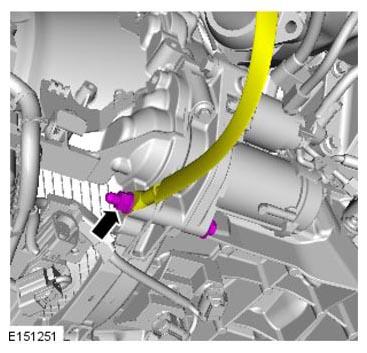

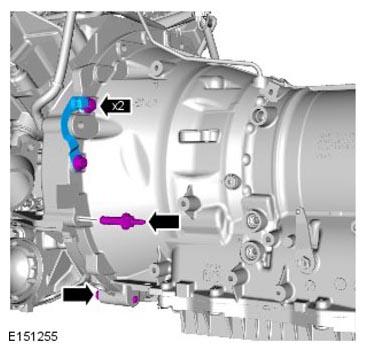

Torque Specification: 48 Nm
Torque Specification: 48 Nm

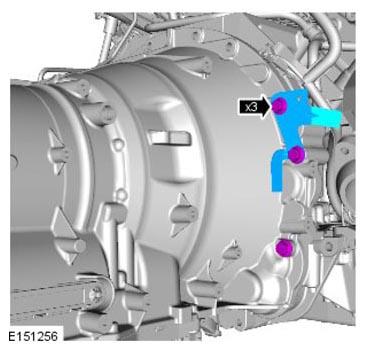

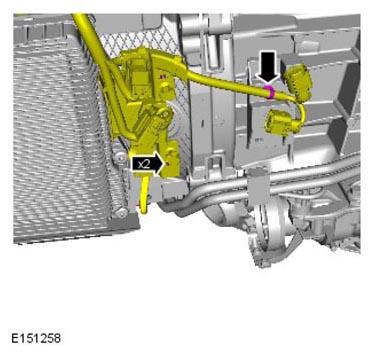

- If necessary, install new clips.

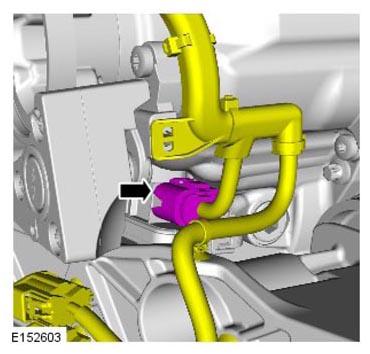

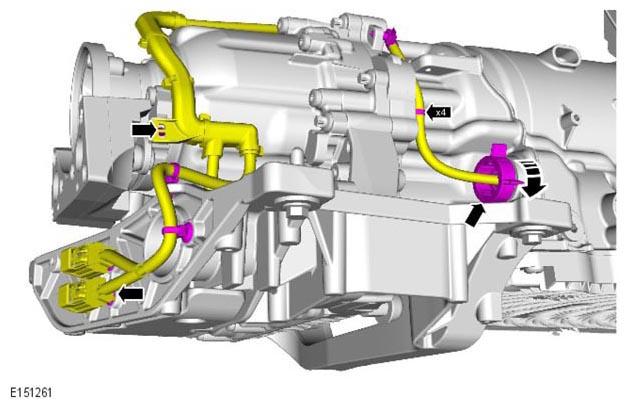

- Remove and discard the 4 cable ties.

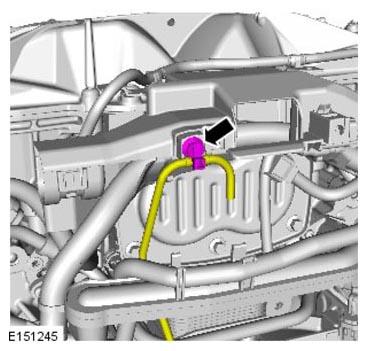

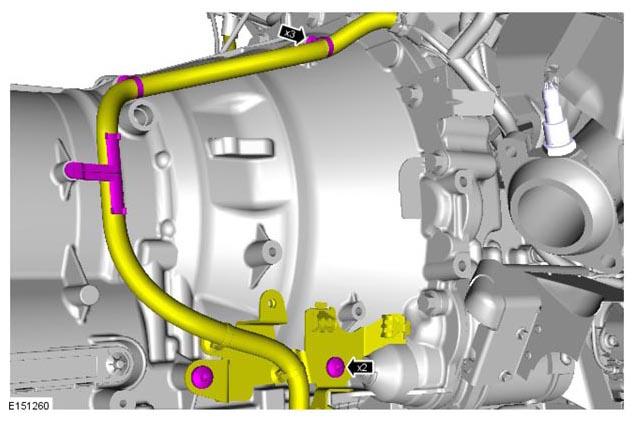

- If necessary, install new clips.
Torque Specification: 15 Nm
Torque Specification: 48 Nm
Remove the jack supporting the transmission.
-
CAUTION: Make sure that new bolts are installed.NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
Torque Specification: 75 Nm
-
CAUTION: Make sure that new nuts are installed.
Torque Specification: 48 Nm
Torque Specification: 10 Nm
- Remove the cable tie.
Torque Specification: 11 Nm
-

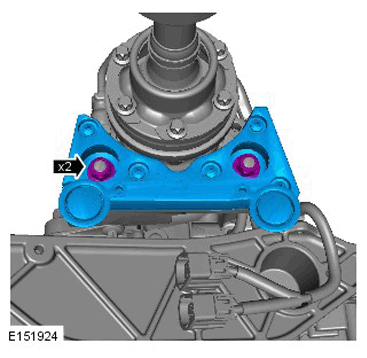

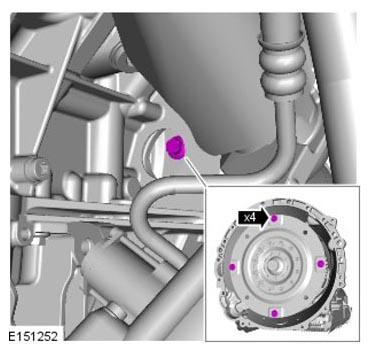

CAUTION:
- Make sure that new bolts are installed.
- Only rotate the crankshaft clockwise.
Torque Specification: 63 Nm
-

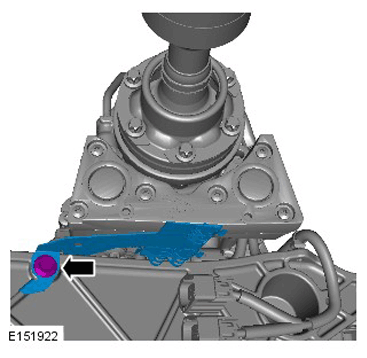

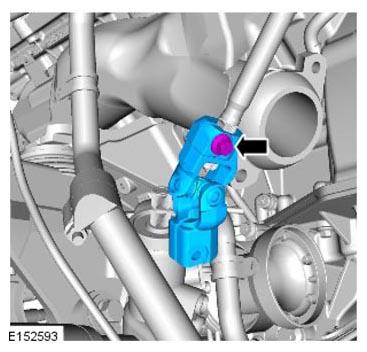

CAUTION: Make sure that a new bolt is installed.
Torque Specification: 35 Nm
- If necessary, install new clips.
Torque Specification: 48 Nm
-
WARNING: Be prepared to collect escaping fluids.CAUTION: Install the new seals.NOTE:
- Remove and discard the O-ring seals.
- Make sure that all openings are sealed. Use new blanking caps.
Torque Specification: 22 Nm
- If necessary, install new clips.
- If necessary, install new clips.
- Refer to Exhaust System - Vehicles With: Diesel Exhaust Fluid or Exhaust System - Vehicles Without: Diesel Exhaust Fluid (Removal and Installation).
- Refer to: Front Driveshaft - AWD (Removal and Installation).
Special Tool(s): 303-021
Special Tool(s): 303-1435
Torque Specification: 48 Nm
- Refer to: Cowl Vent Screen (Installation).
- Refer to: Engine Cover - V6 S/C 3.0L Petrol (Installation).
- Reconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
- Check and top-up the transmission fluid level.
Refer to: Transmission Fluid Level Check (General Procedures).
