Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103

Special Tool(s)

G11284042
 205-932
Remover, Driveshaft
G06387920
 303-021
Engine support bracket
G11309288
 JLR-303-1633
Lifting Bracket, Engine

General Equipment

EQUIPMENT NAME
Transmission jack

Procedure

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid
NOTE:
  • Some illustrations may show the transmission removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (Removal and Installation).
  4. Refer to: Cowl Vent Screen (Removal and Installation).
  5. G11313815
  6. G11313816
  7. G11313817
  8. G11313818
  9. G11309306
    • Special Tool(s):  303-021
    • Special Tool(s):  JLR-303-1633
  10. Refer to: Driveshaft - INGENIUM I4 2.0L Diesel (Removal and Installation).
  11. Refer to: Starter Motor (Removal and Installation).
  12. Refer to: Exhaust System - Vehicles With: Diesel Exhaust Fluid or Exhaust System - Vehicles Without: Diesel Exhaust Fluid (Removal and Installation).
  13. G11314062

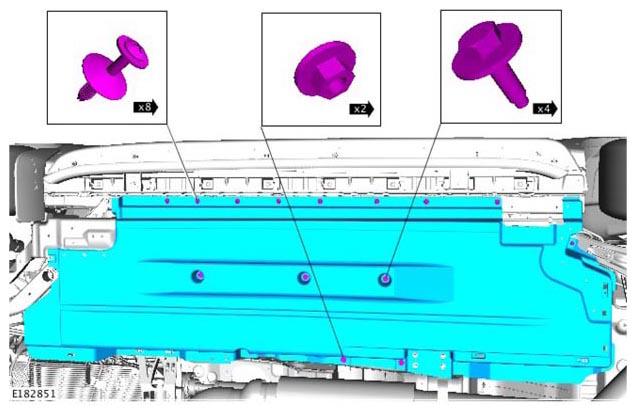

  14. CAUTION: Note the installed position of the component prior to removal.
    G11313796
  15. G11313821
  16. CAUTION:
    • Be prepared to collect escaping fluids.
    • Remove and discard the O-ring seals.
    G11313822
  17. G11313752
  18. G11313824
    • Secure with cable ties.
  19. G11313825
    • Secure with cable ties.
  20. G11313826
    • Secure with cable ties.
  21. CAUTION:
    • Always plug any open connections to prevent contamination.
    • Discard the component.
    G11313827
  22. NOTE: Note the orientation of the component prior to removal.
    G11314071
  23. G11314072
  24. CAUTION: Discard the bolts.
    NOTE: Only turn the engine in the normal direction of rotation.
    G11313829
  25. CAUTION: Care must be taken not to damage the component.
    G11284094
    • Secure with cable ties.

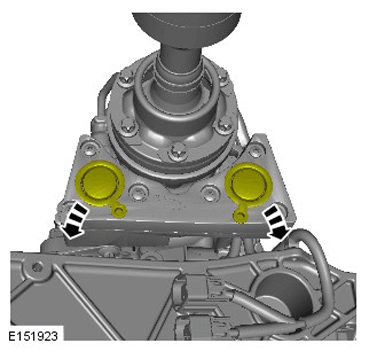

  26. G11284092
  27. CAUTION: Discard the bolts.
    G11284093
  28. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    NOTE:
    • Make sure that the special tool is correctly installed to the recess on the driveshaft.
    • Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
    G11284096

    Special Tool(s):  205-932

  29. CAUTION: Discard the bolt.
    NOTE: Mark the position of the driveshaft on the transmission flange.
    G11284095
  30. G11292093
    • Remove the cable tie.
  31. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11314080
    • Using a suitable stand, support the transmission.
    • General Equipment:  Transmission jack
  32. G11314081
  33. G11313837
  34. G11313838
  35. G11313839
  36. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11314085
  37. NOTE: Do not disassemble further if the component is removed for access only.
    G11314086
  38. G11313842
  39. G11298607
