Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528

Special Tool(s)

G06387920
 303-021
Engine support bracket
G11309288
 JLR-303-1633
Lifting Bracket, Engine

Procedure

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. G11292073
  2. NOTE: Make sure that the torque converter is fully engaged to the transmission.
    G11291833
  3. NOTE: This step is only required if previously removed.
    G11298607
  4. NOTE: This step is only required if previously removed.

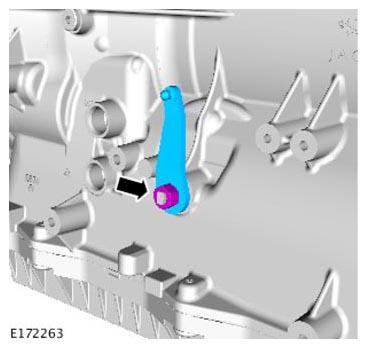

    G11313842

    Torque Specification: 12 Nm

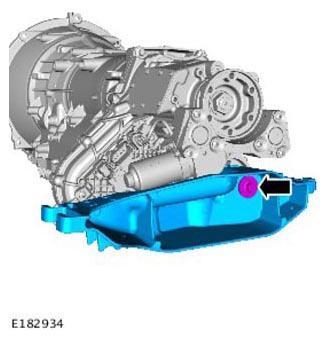

  5. NOTE: This step is only required if previously removed.
    G11314086

    Torque Specification: 48 Nm

  6. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Remove and discard the cable ties securing the torque converter.

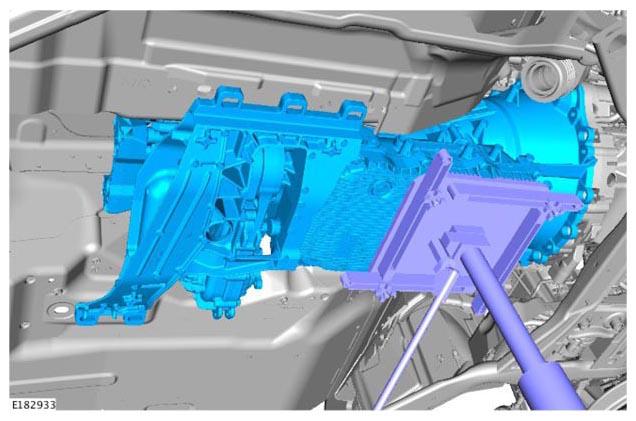

    G11314085

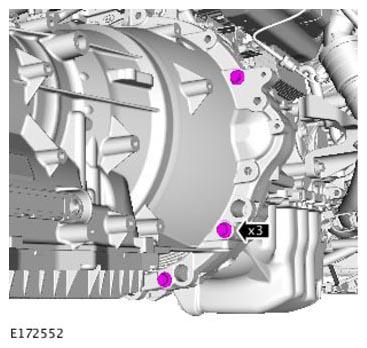

  7. G11313839

    Torque Specification: 48 Nm

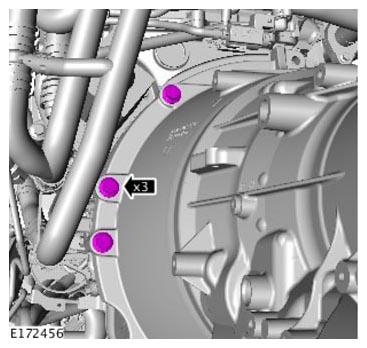

  8. G11313838

    Torque Specification: 48 Nm

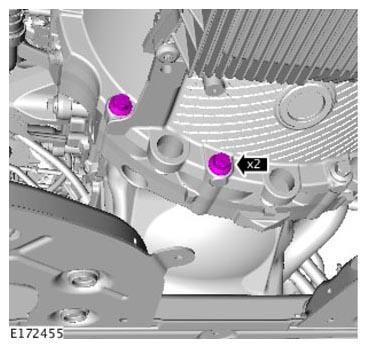

  9. G11313837

    Torque Specification: 48 Nm

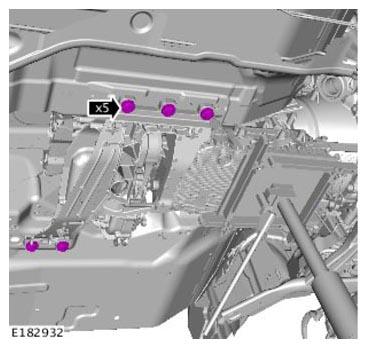

  10. G11314081

    Torque Specification: 45 Nm

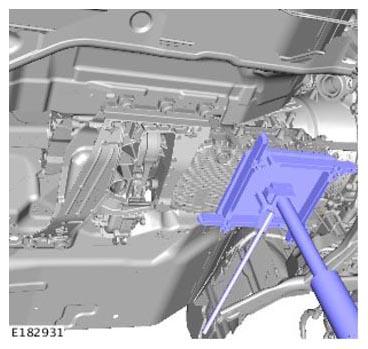

  11. G11314080

    Remove the jack supporting the transmission.

  12. CAUTION: Care must be taken not to damage the component.
    G11284094
    • Secure with a cable tie.

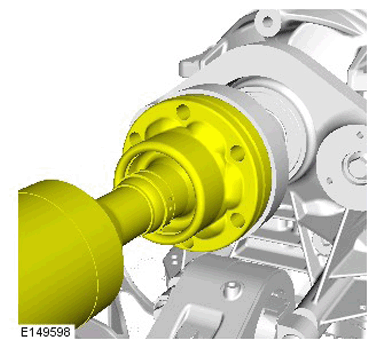

  13. NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11284053
  14. CAUTION: Discard the bolt.
    NOTE: Mark the position of the driveshaft on the transmission flange.
    G11284095

    Torque Specification: 75 Nm

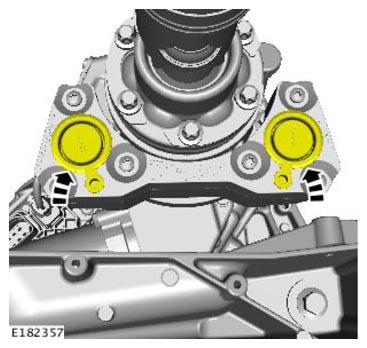

  15. G11314139
  16. G11292093
    • Remove the cable tie.

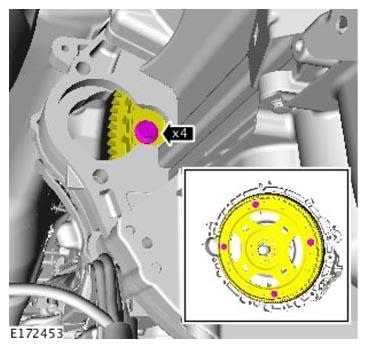

  17. CAUTION: Make sure that new bolts are installed.
    NOTE: Only turn the engine in the normal direction of rotation.
    G11313829

    Torque Specification: 63 Nm

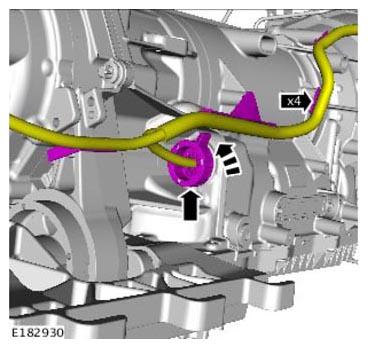

  18. G11314071

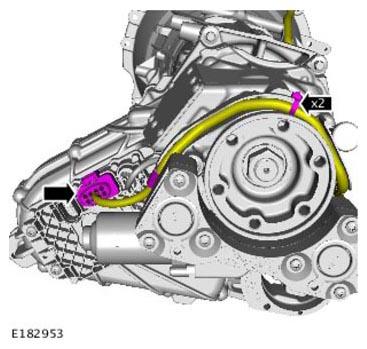

  19. G11314072

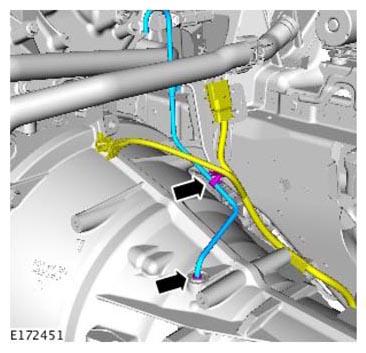

  20. CAUTION:
    • Make sure that a new component is installed.
    • To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    NOTE: Remove and discard the blanking caps.
    G11313827

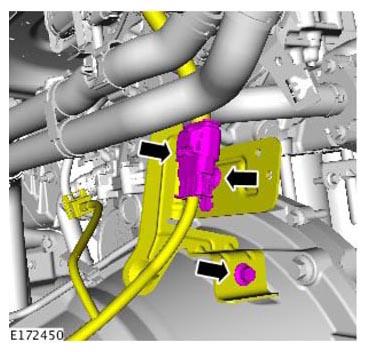

  21. G11313826
    • Remove and discard the 4 cable ties.

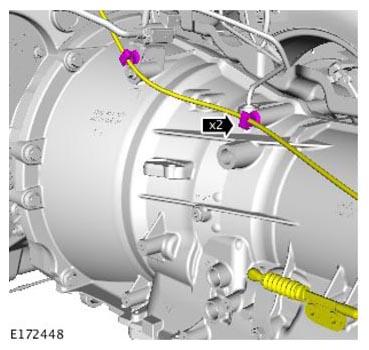

  22. G11313824
    • Remove and discard the 4 cable ties.
  23. G11313752

    Torque Specification: 11 Nm

  24. NOTE: Install new O-ring seals.
    G11313822

    Torque Specification: 22 Nm

  25. G11313821

    Torque Specification: 22 Nm

  26. NOTE: Make sure that these components are installed to the noted removal position.
    G11313820

    Torque Specification: 7 Nm

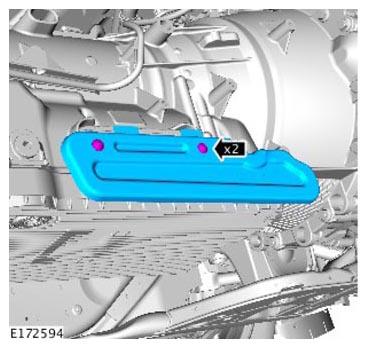

  27. G11314062

    Torque Specification: 9 Nm

  28. Refer to: Exhaust System - Vehicles With: Diesel Exhaust Fluid or Exhaust System - Vehicles Without: Diesel Exhaust Fluid (Removal and Installation).
  29. Refer to: Driveshaft - INGENIUM I4 2.0L Diesel (Removal and Installation).

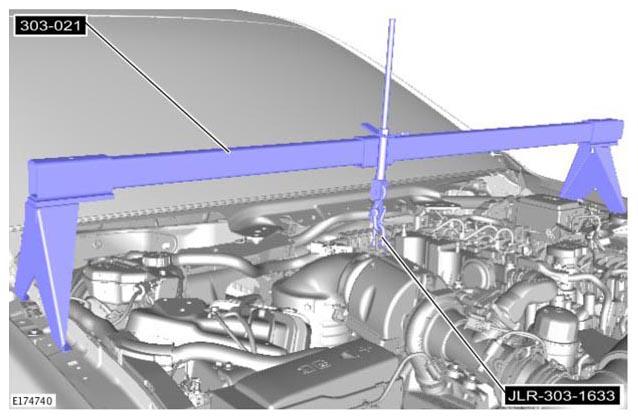

  30. G11309306
    • Special Tool(s):  JLR-303-1633
    • Special Tool(s):  303-021

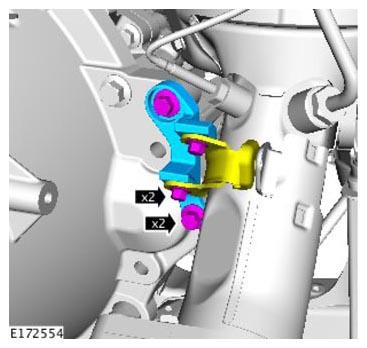

  31. G11313818
    • Torque Specification: 30 Nm
    • Torque Specification: 25 Nm

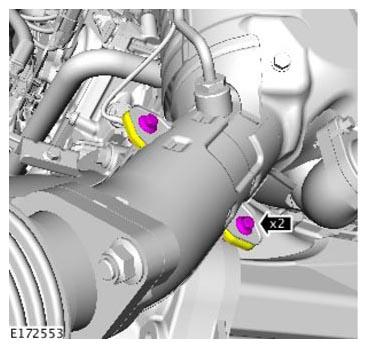

  32. G11313817

    Torque Specification: 26 Nm

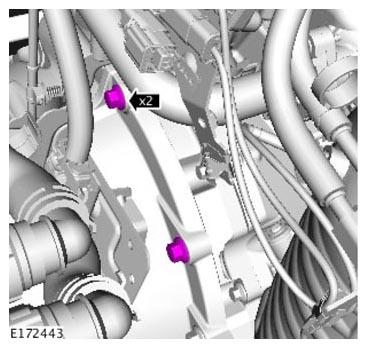

  33. G11313816

    Torque Specification: 48 Nm

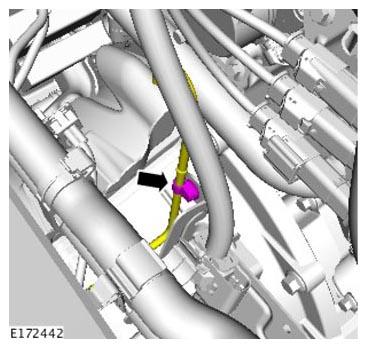

  34. G11313815
  35. Refer to: Cowl Vent Screen (Installation).
  36. Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (Installation).
  37. Refer to: Transmission Fluid Level Check (General Procedures).
