Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

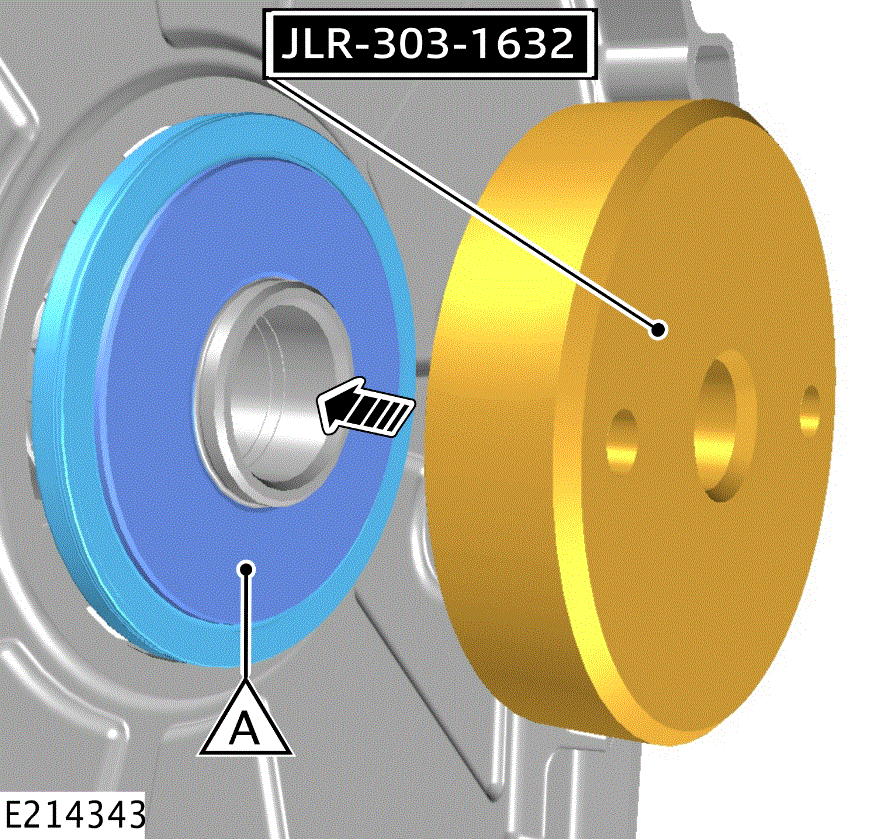

Position the new crankshaft rear oil seal and plastic alignment spacer provided (A) onto the crankshaft, and partially install the crankshaft rear oil seal on the crankshaft using the special tool.

Special Tool(s): JLR-303-1632
Remove the crankshaft rear oil seal plastic alignment spacer.

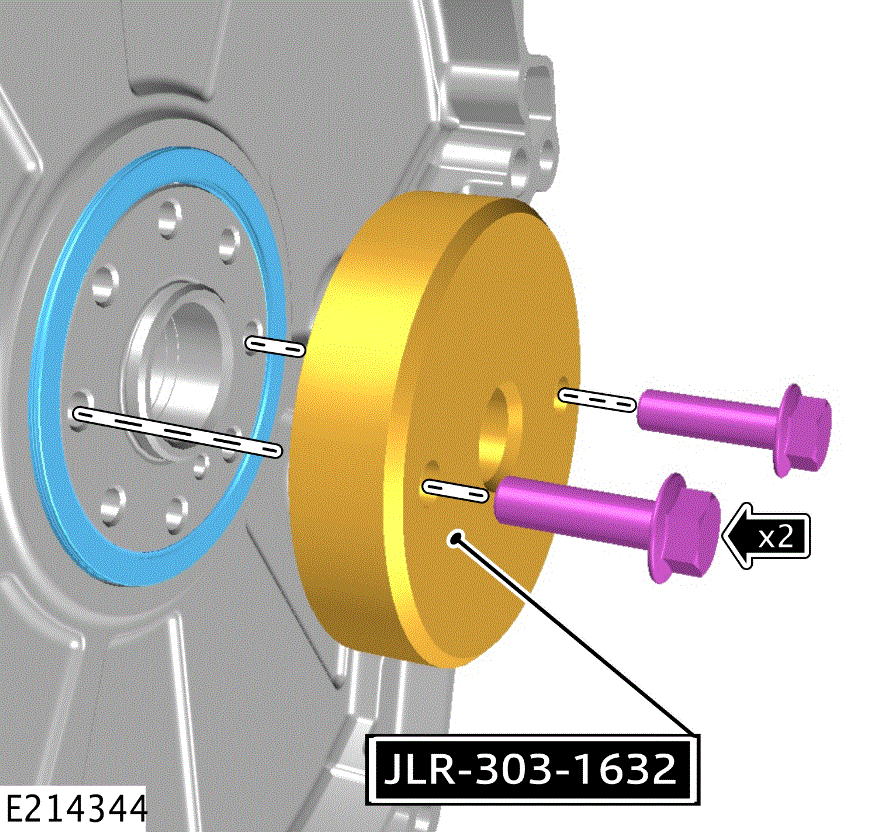

- Using the special tool, install the crankshaft rear oil seal into its fitted position.
  Special Tool(s): JLR-303-1632
- Once the crankshaft rear oil seal is installed remove the 2 retaining bolts and the special tool.
Install the flexplate, install the transmission assembly.
Refer to: Flexplate .
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect .
