Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Fuel Fired Booster Heater .

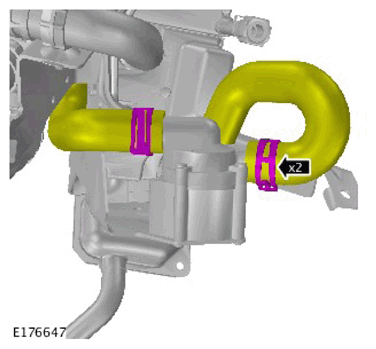

  2. G11310657

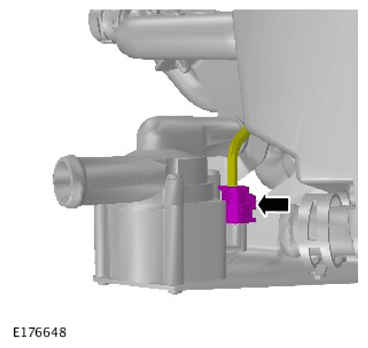

  3. G11310658

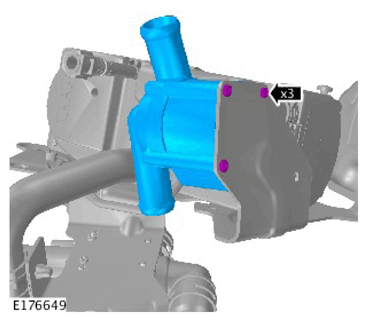

  4. G11310659

    Torque Specification: 1.5 Nm
