Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Fuel Fired Booster Heater (FFBH). Refer to: FUEL FIRED BOOSTER HEATER .

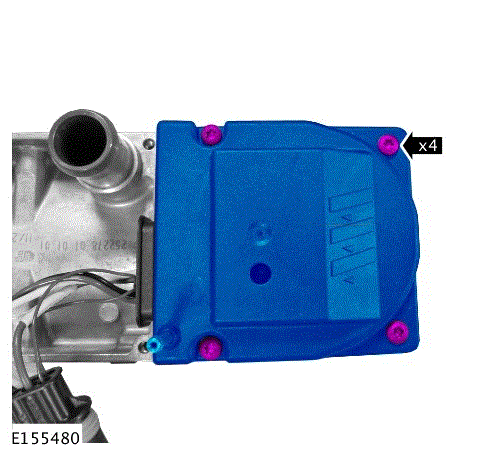

  2. Remove the 4 retaining bolts.
    G00567728

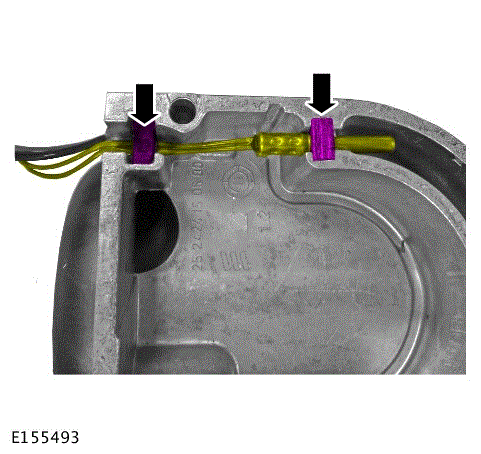

  3. Remove the heater element.
    G00567729

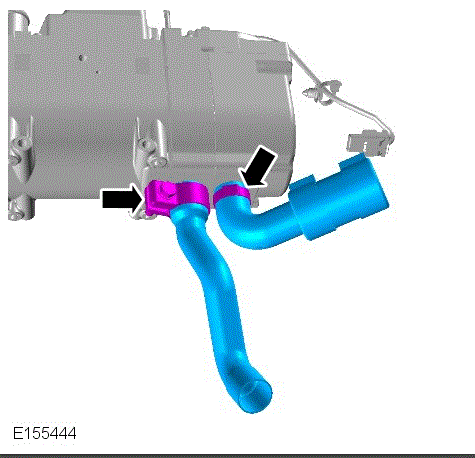

  4. Remove the pipes.
    G00567730

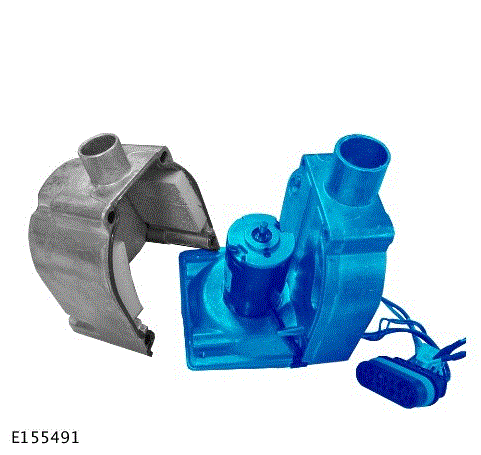

  5. Remove the FFBH blower.
    G00568991

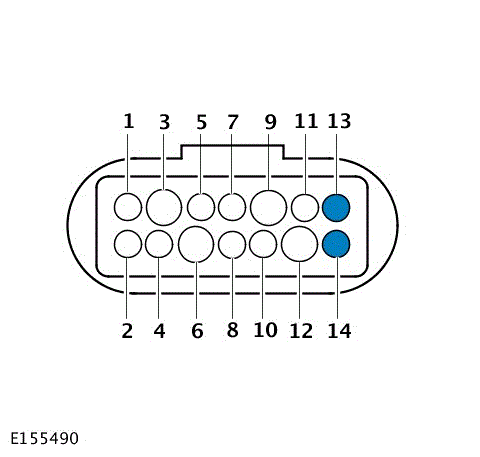

  6. Remove the terminals from the connector as indicated in order to replace the component.
    G00568992
